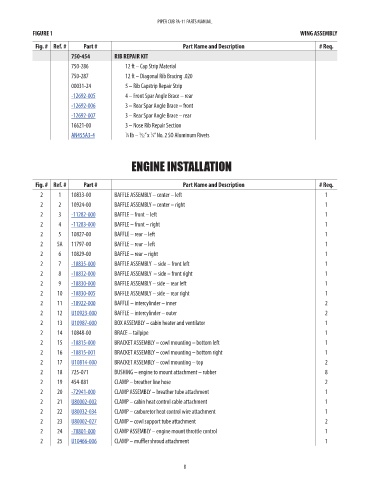

PIPER CUB PA-11 PARTS MANUAL
FIGURE 1 WING ASSEMBLY
Fig. # Ref. # Part # Part Name and Description # Req. Price
750-454 RIB REPAIR KIT NM!
750-286 12 ft – Cap Strip Material NM!
750-287 12 ft – Diagonal Rib Bracing .020 NM!
00031-24 5 – Rib Capstrip Repair Strip NM!
-12692-005 4 – Front Spar Angle Brace – rear 10.57
-12692-006 3 – Rear Spar Angle Brace – front 11
-12692-007 3 – Rear Spar Angle Brace – rear 11.6
16621-00 3 – Nose Rib Repair Section NM!
AN455A3-4 1 ⁄4 lb – ⁄32” x ⁄4” No. 2 SO Aluminum Rivets 3.67
1
3
ENGINE INSTALLATION
Fig. # Ref. # Part # Part Name and Description # Req. Price
2 1 10833-00 BAFFLE ASSEMBLY – center – left 1 NM!
2 2 10924-00 BAFFLE ASSEMBLY – center – right 1 NM!
2 3 -11282-000 BAFFLE – front – left 1 95.83
2 4 -11283-000 BAFFLE – front – right 1 57.92
2 5 10827-00 BAFFLE – rear – left 1 NM!
2 5A 11797-00 BAFFLE – rear – left 1 NM!
2 6 10829-00 BAFFLE – rear – right 1 NM!
2 7 -10835-000 BAFFLE ASSEMBLY – side – front left 1 78.21
2 8 -10832-000 BAFFLE ASSEMBLY – side – front right 1 98.68
2 9 -10830-000 BAFFLE ASSEMBLY – side – rear left 1 69.06
2 10 -10830-005 BAFFLE ASSEMBLY – side – rear right 1 73.88
2 11 -10922-000 BAFFLE – intercylinder – inner 2 14.52
2 12 U10923-000 BAFFLE – intercylinder – outer 2 27.74
2 13 U10987-000 BOX ASSEMBLY – cabin heater and ventilator 1 617.36
2 14 10848-00 BRACE – tailpipe 1 NM!
2 15 -10815-000 BRACKET ASSEMBLY – cowl mounting – bottom left 1 229.19
2 16 -10815-001 BRACKET ASSEMBLY – cowl mounting – bottom right 1 328.84
2 17 U10814-000 BRACKET ASSEMBLY – cowl mounting – top 2 118.28
2 18 725-071 BUSHING – engine to mount attachment – rubber 8 NM!
2 19 454-881 CLAMP – breather line hose 2 NM!
2 20 -72941-000 CLAMP ASSEMBLY – breather tube attachment 1 42
2 21 U80002-002 CLAMP – cabin heat control cable attachment 1 34.32
2 22 U80032-034 CLAMP – carburetor heat control wire attachment 1 25.91
2 23 U80002-027 CLAMP – cowl support tube attachment 2 23.38
2 24 -70801-000 CLAMP ASSEMBLY – engine mount throttle control 1 74.4
2 25 U10466-006 CLAMP – muffler shroud attachment 1 32.15
