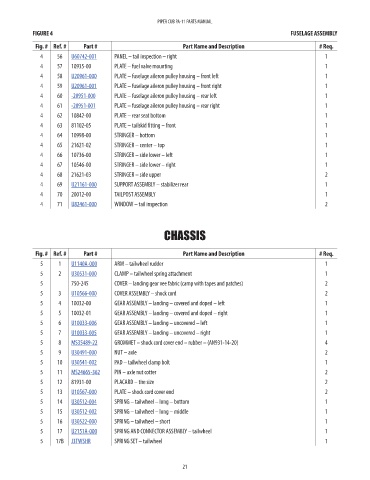

PIPER CUB PA-11 PARTS MANUAL
FIGURE 4 FUSELAGE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
4 56 U60742-001 PANEL – tail inspection – right 1 38.43
4 57 10935-00 PLATE – fuel valve mounting 1 NM!
4 58 U20961-000 PLATE – fuselage aileron pulley housing – front left 1 29.08
4 59 U20961-001 PLATE – fuselage aileron pulley housing – front right 1 12.8
4 60 -20951-000 PLATE – fuselage aileron pulley housing – rear left 1 13.36
4 61 -20951-001 PLATE – fuselage aileron pulley housing – rear right 1 13.36
4 62 10842-00 PLATE – rear seat bottom 1 NM!
4 63 81102-05 PLATE – tailskid fitting – front 1 NM!
4 64 10998-00 STRINGER – bottom 1 NM!
4 65 21621-02 STRINGER – center – top 1 NM!
4 66 10736-00 STRINGER – side lower – left 1 NM!
4 67 10546-00 STRINGER – side lower – right 1 NM!
4 68 21621-03 STRINGER – side upper 2 NM!
4 69 U21161-000 SUPPORT ASSEMBLY – stabilizer rear 1 238.34
4 70 20012-00 TAILPOST ASSEMBLY 1 NM!
4 71 U82461-000 WINDOW – tail inspection 2 18.02

CHASSIS

Fig. # Ref. # Part # Part Name and Description # Req. Price
5 1 U1140A-000 ARM – tailwheel rudder 1 218.93
5 2 U30531-000 CLAMP – tailwheel spring attachment 1 31.59
5 750-245 COVER – landing gear vee fabric (camp with tapes and patches) 2 NM!
5 3 U10566-000 COVER ASSEMBLY – shock cord 2 73.81
5 4 10032-00 GEAR ASSEMBLY – landing – covered and doped – left 1 NM!
5 5 10032-01 GEAR ASSEMBLY – landing – covered and doped – right 1 NM!
5 6 U10033-006 GEAR ASSEMBLY – landing – uncovered – left 1 917.09
5 7 U10033-005 GEAR ASSEMBLY – landing – uncovered – right 1 877.71
5 8 MS35489-22 GROMMET – shock cord cover end – rubber – (AN931-14-20) 4 2.34
5 9 U30491-000 NUT – axle 2 77.13
5 10 U30541-002 PAD – tailwheel clamp bolt 1 11.38
5 11 MS24665-362 PIN – axle nut cotter 2 0.11
5 12 81931-00 PLACARD – tire size 2 NM!
5 13 U10567-000 PLATE – shock cord cover end 2 97.06
5 14 U30512-004 SPRING – tailwheel – long – bottom 1 63.68
5 15 U30512-002 SPRING – tailwheel – long – middle 1 71.23
5 16 U30522-000 SPRING – tailwheel – short 1 51.07
5 17 U2151A-000 SPRING AND CONNECTOR ASSEMBLY – tailwheel 1 80.82
5 17B J3TWSHR SPRING SET – tailwheel 1 190.64

21
