Page 94 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
38-1 108-6222501-0 Control Assembly – Throttle 1 46-47-48 413.05
38-2 108-6221502-1 Control – Carburetor Mixture 1 46-47-48 204.69
38-3 A700-10-0440 Control – Carburetor Heat 1 46-47-48 75.43
38-4 108-6221502-2 Control – Cabin Heat 1 46 117.61
38-4 108-6221502-3 Control Cabin Heat 1 47-48 105.63
38-5 108-6221504 Bracket Assembly – Throttle Control – Aft 1 46 50.11
38-5 108-6222504 Bracket Assembly – Throttle Control – Aft 1 47-48 75.56
38-6 108-6221503 Bracket Assembly – Throttle Control – Forward 1 46-47-48 81.06
38-7 108-6221507 1 Bracket Assembly – Cabin Heat Control Support 1 46 78.32
38-8 108-6221506 3 Bracket Assembly – Mixture Control 1 46-47 77.51
38-8 108-6222506 4 Bracket Assembly – Mixture Control 1 47-48 107.3
38-9 TACH-36 Tachometer Shaft 1 46-47-48 133.96
38-10 108-6222601 2 Hose Assembly – Oil Pressure 1 47-48 141.59
1 Discontinued on 108-478 and up
2 For airplanes serial 108-1472 and up
3 For airplanes serial 108-1 through 108-2249
4 For airplanes serial 108-2250 and up

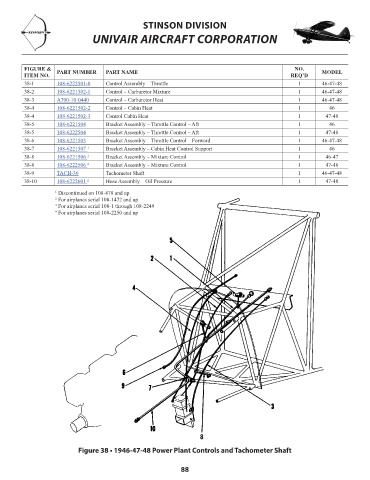

Figure 38 • 1946-47-48 Power Plant Controls and Tachometer Shaft
