P. 89
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

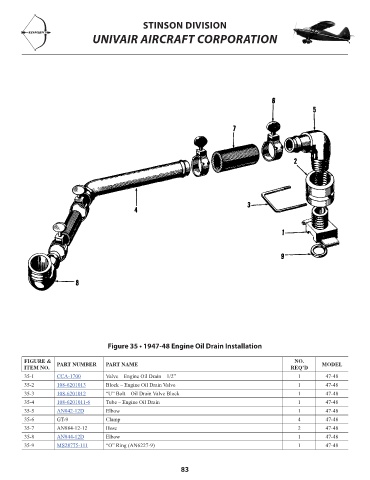

Figure 35 • 1947-48 Engine Oil Drain Installation
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
35-1 CCA-1700 Valve – Engine Oil Drain – 1/2” 1 47-48 43.42
35-2 108-6201013 Block – Engine Oil Drain Valve 1 47-48 93.85
35-3 108-6201012 “U” Bolt – Oil Drain Valve Block 1 47-48 76.89
35-4 108-6201011-6 Tube – Engine Oil Drain 1 47-48 92.35
35-5 AN842-12D Elbow 1 47-48 115.2
35-6 GT-9 Clamp 4 47-48 NM!
35-7 AN884-12-12 Hose 2 47-48 NM!
35-8 AN844-12D Elbow 1 47-48 30
35-9 MS28775-111 “O” Ring (AN6227-9) 1 47-48 1
83
