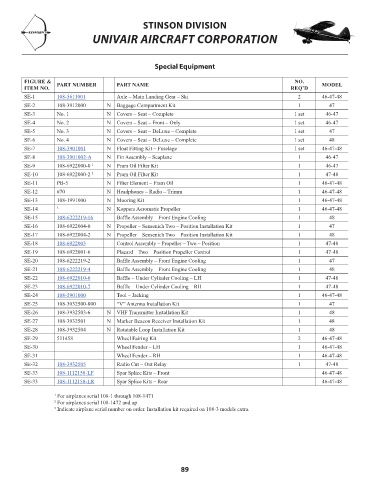

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

Special Equipment

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICES
SE-1 108-5611001 Axle – Main Landing Gear – Ski 2 46-47-48 922.11
SE-2 108-3912000 N Baggage Compartment Kit 1 47 NM!
SE-3 No. 1 N Covers – Seat – Complete 1 set 46-47 NM!
SE-4 No. 2 N Covers – Seat – Front – Only 1 set 46-47 NM!
SE-5 No. 3 N Covers – Seat – DeLuxe – Complete 1 set 47 NM!
SE-6 No. 4 N Covers – Seat – DeLuxe – Complete 1 set 48 NM!
SE-7 108-3901001 N Float Fitting Kit – Fuselage 1 set 46-47-48 1368.96
SE-8 108-3901002-A N Fin Assembly – Seaplane 1 46-47 1293.33
SE-9 108-6922000-0 1 N Pram Oil Filter Kit 1 46-47 NM!
SE-10 108-6922000-2 2 N Pram Oil Filter Kit 1 47-48 NM!
SE-11 PB-5 N Filter Element – Fram Oil 1 46-47-48 NM!
SE-12 #70 N Headphones – Radio – Trimm 1 46-47-48 NM!
SE-13 108-1991000 N Mooring Kit 1 46-47-48 NM!
SE-14 3 N Koppers Aeromatic Propeller 1 46-47-48
SE-15 108-6222219-16 Baffle Assembly – Front Engine Cooling 1 48 190.81
SE-16 108-6922004-0 N Propeller – Sensenich Two – Position Installation Kit 1 47 NM!
SE-17 108-6922004-2 N Propeller – Sensenich Two – Position Installation Kit 1 48 NM!
SE-18 108-6922003 Control Assembly – Propeller – Two – Position 1 47-48 35.27
SE-19 108-6922001-6 Placard – Two – Position Propeller Control 1 47-48 NM!
SE-20 108-6222219-2 Baffle Assembly – Front Engine Cooling 1 47 NM!
SE-21 108-6222219-4 Baffle Assembly – Front Engine Cooling 1 48 214.13
SE-22 108-6922010-6 Baffle – Under Cylinder Cooling – LH 1 47-48 158.44
SE-23 108-6922010-7 Baffle – Under Cylinder Cooling – RH 1 47-48 158.44
SE-24 108-5901000 Tool – Jacking 1 46-47-48 64.69
SE-25 108-3032500-800 “V” Antenna Installation Kit 1 47 NM!
SE-26 108-3932503-6 N VHF Transmitter Installation Kit 1 48 NM!
SE-27 108-3932501 N Marker Beacon Receiver Installation Kit 1 48 NM!
SE-28 108-3932504 N Rotatable Loop Installation Kit 1 48 NM!
SE-29 511458 Wheel Fairing Kit 2 46-47-48 NM!
SE-30 Wheel Fender – LH 1 46-47-48
SE-31 Wheel Fender – RH 1 46-47-48
SE-32 108-3932505 Radio Cut – Out Relay 1 47-48 69.63
SE-33 108-1112158-LF Spar Splice Kits – Front 46-47-48 356.54
SE-33 108-1112158-LR Spar Splice Kits – Rear 46-47-48 244.79

1 For airplanes serial 108-1 through 108-1471
2 For airplanes serial 108-1472 and up
3 Indicate airplane serial number on order. Installation kit required on 108-3 models extra.

89
