STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

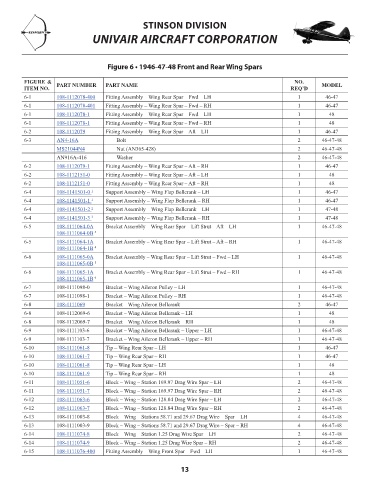

Figure 6 • 1946-47-48 Front and Rear Wing Spars

FIGURE & PART NUMBER PART NAME NO. MODEL
ITEM NO. REQ’D
6-1 108-1112078-400 Fitting Assembly – Wing Rear Spar – Fwd – LH 1 46-47 81.76
6-1 108-1112078-401 Fitting Assembly – Wing Rear Spar – Fwd – RH 1 46-47 81.76
6-1 108-1112078-1 Fitting Assembly – Wing Rear Spar – Fwd – LH 1 48 169.4
6-1 108-1112078-1 Fitting Assembly – Wing Rear Spar – Fwd – RH 1 48 169.4
6-2 108-1112079 Fitting Assembly – Wing Rear Spar – Aft – LH 1 46-47 51.22
6-3 AN4-16A Bolt 2 46-47-48 0.4
MS21044N4 Nut (AN365-428) 2 46-47-48 0.3
AN916A-416 Washer 2 46-47-48 NM!
6-2 108-1112079-1 Fitting Assembly – Wing Rear Spar – Aft – RH 1 46-47 67.46
6-2 108-1112151-0 Fitting Assembly – Wing Rear Spar – Aft – LH 1 48 172.52
6-2 108-1112151-0 Fitting Assembly – Wing Rear Spar – Aft – RH 1 48 172.52
6-4 108-1141501-0 1 Support Assembly – Wing Flap Bellcrank – LH 1 46-47 147.59
6-4 108-1141501-1 1 Support Assembly – Wing Flap Bellcrank – RH 1 46-47 147.59
6-4 108-1141501-2 2 Support Assembly – Wing Flap Bellcrank – LH 1 47-48 167.01
6-4 108-1141501-3 2 Support Assembly – Wing Flap Bellcrank – RH 1 47-48 148.79
6-5 108-1111064-0A Bracket Assembly – Wing Rear Spar – Lift Strut – Aft – LH 1 46-47-48 353.4
108-1111064-0B 3
6-5 108-1111064-1A Bracket Assembly – Wing Rear Spar – Lift Strut – Aft – RH 1 46-47-48 353.4
108-1111064-1B 4
6-6 108-1111065-0A Bracket Assembly – Wing Rear Spar – Lift Strut – Fwd – LH 1 46-47-48 353.4
108-1111065-0B 5
6-6 108-1111065-1A Bracket Assembly – Wing Rear Spar – Lift Strut – Fwd – RH 1 46-47-48 353.4
108-1111065-1B 6
6-7 108-1111098-0 Bracket – Wing Aileron Pulley – LH 1 46-47-48 NM!
6-7 108-1111098-1 Bracket – Wing Aileron Pulley – RH 1 46-47-48 NM!
6-8 108-1111069 Bracket – Wing Aileron Bellcrank 2 46-47 29.03
6-8 108-1112069-6 Bracket – Wing Aileron Bellcrank – LH 1 48 NM!
6-8 108-1112069-7 Bracket – Wing Aileron Bellcrank – RH 1 48 NM!
6-9 108-1111103-6 Bracket – Wing Aileron Bellcrank – Upper – LH 1 46-47-48 NM!
6-9 108-1111103-7 Bracket – Wing Aileron Bellcrank – Upper – RH 1 46-47-48 NM!
6-10 108-1111061-8 Tip – Wing Rear Spar – LH 1 46-47 83.21
6-10 108-1111061-7 Tip – Wing Rear Spar – RH 1 46-47 59.2
6-10 108-1111061-8 Tip – Wing Rear Spar – LH 1 48 83.21
6-10 108-1111061-9 Tip – Wing Rear Spar – RH 1 48 108.72
6-11 108-1111051-6 Block – Wing – Station 169.97 Drag Wire Spar – LH 2 46-47-48 52.08
6-11 108-1111051-7 Block – Wing – Station 169.97 Drag Wire Spar – RH 2 46-47-48 52.08
6-12 108-1111063-6 Block – Wing – Station 128.84 Drag Wire Spar – LH 2 46-47-48 67.46
6-12 108-1111063-7 Block – Wing – Station 128.84 Drag Wire Spar – RH 2 46-47-48 40.63
6-13 108-1111003-8 Block – Wing – Stations 58.71 and 29.67 Drag Wire – Spar – LH 4 46-47-48 NM!
6-13 108-1111003-9 Block – Wing – Stations 58.71 and 29.67 Drag Wire – Spar – RH 4 46-47-48 NM!
6-14 108-1111074-8 Block – Wing – Station 1.25 Drag Wire Spar – LH 2 46-47-48 45.01
6-14 108-1111074-9 Block – Wing – Station 1.25 Drag Wire Spar – RH 2 46-47-48 45.01
6-15 108-1111076-400 Fitting Assembly – Wing Front Spar – Fwd – LH 1 46-47-48 121.94

13
