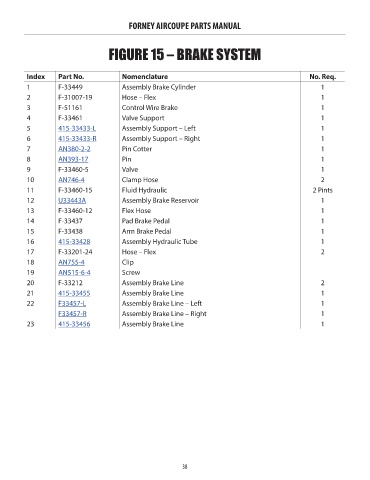

FORNEY AIRCOUPE PARTS MANUAL
FIGURE 15 – BRAKE SYSTEM
Index Part No. Nomenclature No. Req. Price
1 F-33449 Assembly Brake Cylinder 1 NM!
2 F-31007-19 Hose – Flex 1 NM!
3 F-51161 Control Wire Brake 1 NM!
4 F-33461 Valve Support 1 NM!
5 415-33433-L Assembly Support – Left 1 25.84
6 415-33433-R Assembly Support – Right 1 25.84
7 AN380-2-2 Pin Cotter 1 0.04
8 AN393-17 Pin 1 1.08
9 F-33460-5 Valve 1 NM!
10 AN746-4 Clamp Hose 2 1.71
11 F-33460-15 Fluid Hydraulic 2 Pints NM!
12 U33443A Assembly Brake Reservoir 1 386.46
13 F-33460-12 Flex Hose 1 NM!
14 F-33437 Pad Brake Pedal 1 NM!
15 F-33438 Arm Brake Pedal 1 NM!
16 415-33428 Assembly Hydraulic Tube 1 26.83
17 F-33201-24 Hose – Flex 2 NM!
18 AN755-4 Clip 0.5
19 AN515-6-4 Screw 0.03
20 F-33212 Assembly Brake Line 2 NM!
21 415-33455 Assembly Brake Line 1 29.7
22 F33457-L Assembly Brake Line – Left 1 24.78
F33457-R Assembly Brake Line – Right 1 24.78
23 415-33456 Assembly Brake Line 1 31.18
