FORNEY AIRCOUPE PARTS MANUAL

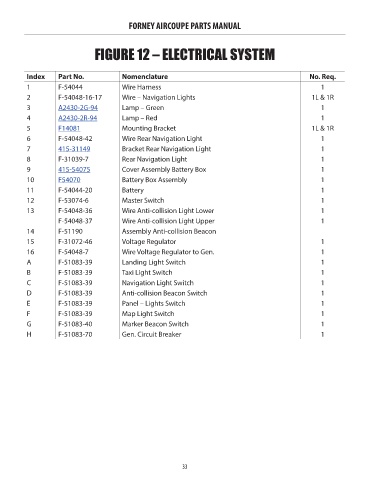

FIGURE 12 – ELECTRICAL SYSTEM
Index Part No. Nomenclature No. Req. Price
1 F-54044 Wire Harness 1 NM!
2 F-54048-16-17 Wire – Navigation Lights 1L & 1R NM!
3 A2430-2G-94 Lamp – Green 1 295.49
4 A2430-2R-94 Lamp – Red 1 295.48
5 F14081 Mounting Bracket 1L & 1R 206.25
6 F-54048-42 Wire Rear Navigation Light 1 NM!
7 415-31149 Bracket Rear Navigation Light 1 13.54
8 F-31039-7 Rear Navigation Light 1 NM!
9 415-54075 Cover Assembly Battery Box 1 256.35
10 F54070 Battery Box Assembly 1 1062.63
11 F-54044-20 Battery 1 NM!
12 F-53074-6 Master Switch 1 NM!
13 F-54048-36 Wire Anti-collision Light Lower 1 NM!
F-54048-37 Wire Anti-collision Light Upper 1 NM!
14 F-51190 Assembly Anti-collision Beacon NM!
15 F-31072-46 Voltage Regulator 1 NM!
16 F-54048-7 Wire Voltage Regulator to Gen. 1 NM!
A F-51083-39 Landing Light Switch 1 NM!
B F-51083-39 Taxi Light Switch 1 NM!
C F-51083-39 Navigation Light Switch 1 NM!
D F-51083-39 Anti-collision Beacon Switch 1 NM!
E F-51083-39 Panel – Lights Switch 1 NM!
F F-51083-39 Map Light Switch 1 NM!
G F-51083-40 Marker Beacon Switch 1 NM!
H F-51083-70 Gen. Circuit Breaker 1 NM!
33
