FORNEY AIRCOUPE PARTS MANUAL

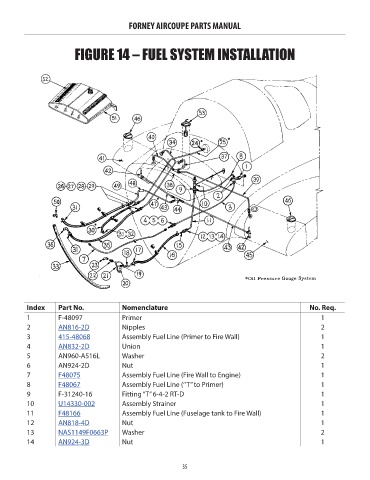

FIGURE 14 – FUEL SYSTEM INSTALLATION
Index Part No. Nomenclature No. Req. Price
1 F-48097 Primer 1 NM!
2 AN816-2D Nipples 2 8.5
3 415-48068 Assembly Fuel Line (Primer to Fire Wall) 1 18.05
4 AN832-2D Union 1 12.5
5 AN960-A516L Washer 2 NM!
6 AN924-2D Nut 1 NM!
7 F48075 Assembly Fuel Line (Fire Wall to Engine) 1 49.54
8 F48067 Assembly Fuel Line (‘’T” to Primer) 1 91.14
9 F-31240-16 Fitting “T” 6-4-2 RT-D 1 NM!
10 U14330-002 Assembly Strainer 1 300.56
11 F48166 Assembly Fuel Line (Fuselage tank to Fire Wall) 1 51.45
12 AN818-4D Nut 1 1.26
13 NAS1149F0663P Washer 2 0.11
14 AN924-3D Nut 1 2.94
