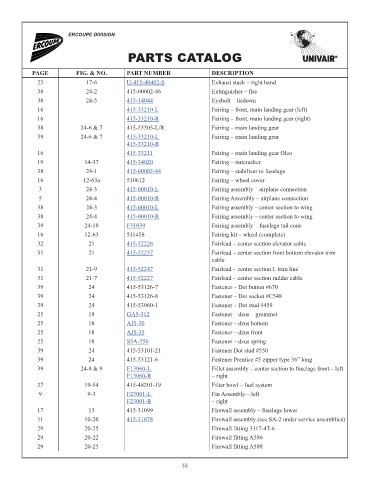

Page 60 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
23 17-6 U-415-40402-S Exhaust stack – right hand 1286.61
38 24-2 415-00002-46 Extinguisher – fire NM!
38 24-5 415-14044 Eyebolt – tiedown 12.56
16 415-33210-L Fairing – front, main landing gear (left) 181.94
16 415-33210-R Fairing – front, main landing gear (right) 181.94
38 24-6 & 7 415-33305-L/R Fairing – main landing gear NM!
39 24-6 & 7 415-33210-L Fairing – main landing gear 181.94
415-33210-R
16 415-33211 Fairing – main landing gear Oleo 125.1
19 14-37 415-34020 Fairing – nutcracker 102.9
38 24-1 415-00002-44 Fairing – stabilizer to fuselage 14.44
16 12-63a 510612 Fairing – wheel cover NM!
3 24-3 415-00010-L Fairing assembly – airplane connection 66.89
5 24-4 415-00010-R Fairing Assembly – airplane connection 68.29
38 24-3 415-00010-L Fairing assembly – center section to wing 66.89
38 24-4 415-00010-R Fairing assembly – center section to wing 68.29
39 24-10 F31039 Fairing assembly – fuselage tail cone 1365.6
16 12-63 511458 Fairing kit – wheel (complete) NM!
32 21 415-52226 Fairlead – center section elevator cable 4.58
31 21 415-52237 Fairlead – center section front bottom elevator trim 4.58
cable
31 21-9 415-52247 Fairlead – center section I. trim line 6.73
31 21-7 415-52227 Fairlead – center section rudder cable 6.44
39 24 415-53126-7 Fastener – Dot button #670 NM!
39 24 415-53126-8 Fastener – Dot socket #C548 NM!
39 24 415-53060-1 Fastener – Dot stud #459 NM!
25 18 GA5-312 Fastener – dzus – grommet 3.43
25 18 AJ5-30 Fastener – dzus bottom 3.85
25 18 AJ5-35 Fastener – dzus front 5.01
25 18 S5A-250 Fastener – dzus spring 2.31
39 24 415-53101-21 Fastener Dot stud #550 NM!
39 24 415-53121-6 Fastener Prentice #5 zipper type 36” long NM!
39 24-8 & 9 F13060-L Fillet assembly – center section to fuselage front – left 1206.41
F13060-R – right
27 19-54 415-48201-19 Filter bowl – fuel system NM!
9 9-3 F23001-L Fin Assembly – left 1021.39
F23001-R – right
17 13 415-31099 Firewall assembly – fuselage lower NM!
11 10-20 415-31078 Firewall assembly (see SA-2 under service assemblies) 1432.04
29 20-25 Firewall fitting 3117-4T-6 x
29 20-22 Firewall fitting A586 x
29 20-25 Firewall fitting A588 x

55
