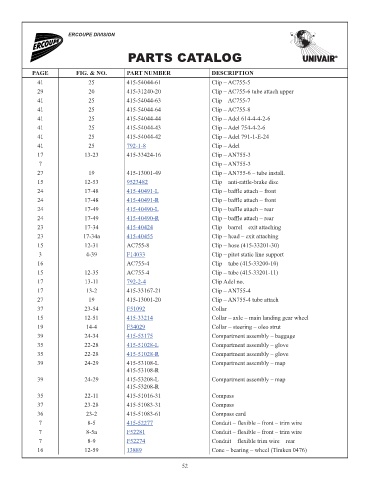

Page 57 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
41 25 415-54044-61 Clip – AC755-5 NM!
29 20 415-31240-20 Clip – AC755-6 tube attach upper NM!
41 25 415-54044-63 Clip – AC755-7 NM!
41 25 415-54044-64 Clip – AC755-8 NM!
41 25 415-54044-44 Clip – Adel 614-4-4-2-6 NM!
41 25 415-54044-43 Clip – Adel 754-4-2-6 NM!
41 25 415-54044-42 Clip – Adel 791-1-E-24 NM!
41 25 792-1-8 Clip – Adel 3.46
17 13-23 415-33424-16 Clip – AN755-3 NM!
7 Clip – AN755-3 NM!
27 19 415-13001-49 Clip – AN755-6 – tube install. NM!
15 12-53 9523482 Clip – anti-rattle-brake disc 60
24 17-48 415-40491-L Clip – baffle attach – front 2.63
24 17-48 415-40491-R Clip – baffle attach – front 2.63
24 17-49 415-40490-L Clip – baffle attach – rear 2.63
24 17-49 415-40490-R Clip – baffle attach – rear 2.63
23 17-34 415-40424 Clip – barrel – exit attaching 4.36
23 17-34a 415-40455 Clip – head – exit attaching 6.44
15 12-31 AC755-8 Clip – hose (415-33201-30) NM!
3 4-39 F14033 Clip – pitot static line support 10.06
16 AC755-4 Clip – tube (415-33200-10) NM!
15 12-35 AC755-4 Clip – tube (415-33201-11) NM!
17 13-11 792-2-4 Clip Adel no. 2.54
17 13-2 415-33167-21 Clip – AN755-4 NM!
27 19 415-13001-20 Clip – AN755-4 tube attach NM!
37 23-54 F51092 Collar 175.27
15 12-51 415-33214 Collar – axle – main landing gear wheel 30.49
19 14-4 F34029 Collar – steering – oleo strut 279.37
39 24-34 415-53175 Compartment assembly – baggage 205.85
35 22-28 415-51028-L Compartment assembly – glove 105.63
35 22-28 415-51028-R Compartment assembly – glove 105.63
39 24-29 415-53108-L Compartment assembly – map NM!
415-53108-R
39 24-29 415-53208-L Compartment assembly – map NM!
415-53208-R
35 22-11 415-51016-31 Compass NM!
37 23-28 415-51083-31 Compass NM!
36 23-2 415-51083-61 Compass card NM!
7 8-5 415-52277 Conduit – flexible – front – trim wire 111.97
7 8-5a F52281 Conduit – flexible – front – trim wire 98.28
7 8-9 F52274 Conduit – flexible trim wire – rear 127.37
16 12-59 13889 Cone – bearing – wheel (Timken 0476) 77.98
