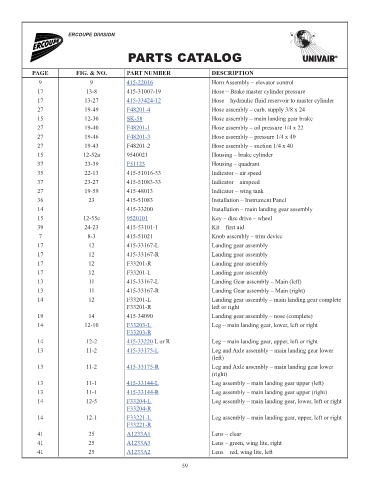

Page 64 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
9 9 415-22016 Horn Assembly – elevator control 29.47
17 13-8 415-31007-19 Hose – Brake master cylinder pressure NM!
17 13-27 415-33424-12 Hose – hydraulic fluid reservoir to master cylinder 25.99
27 19-49 F48201-4 Hose assembly – carb. supply 3/8 x 24 78.38
15 12-30 SK-58 Hose assembly – main landing gear brake 289.73
27 19-40 F48201-1 Hose assembly – oil pressure 1/4 x 22 103.34
27 19-46 F48201-3 Hose assembly – pressure 1/4 x 40 91.58
27 19-43 F48201-2 Hose assembly – suction 1/4 x 40 NM!
15 12-52a 9540021 Housing – brake cylinder NM!
37 23-39 F51123 Housing – quadrant 51.59
35 22-13 415-51016-33 Indicator – air speed NM!
37 23-27 415-51083-33 Indicator – airspeed NM!
27 19-59 415-48013 Indicator – wing tank NM!
36 23 415-51083 Installation – Instrument Panel NM!
14 415-33200 Installation – main landing gear assembly NM!
15 12-55c 9520101 Key – disc drive – wheel 74.41
39 24-23 415-53101-1 Kit – first aid NM!
7 8-3 415-51021 Knob assembly – trim device NM!
17 12 415-33167-L Landing gear assembly NM!
17 12 415-33167-R Landing gear assembly NM!
17 12 F33201-R Landing gear assembly NM!
17 12 F33201-L Landing gear assembly NM!
13 11 415-33167-L Landing Gear assembly – Main (left) NM!
13 11 415-33167-R Landing Gear assembly – Main (right) NM!
14 12 F33201-L Landing gear assembly – main landing gear complete NM!
F33201-R left or right
19 14 415-34090 Landing gear assembly – nose (complete) NM!
14 12-10 F33203-L Leg – main landing gear, lower, left or right 543.42
F33203-R
14 12-2 415-33220 L or R Leg – main landing gear, upper, left or right 586.05
13 11-2 415-33175-L Leg and Axle assembly – main landing gear lower 543.42
(left)
13 11-2 415-33175-R Leg and Axle assembly – main landing gear lower 543.42
(right)
13 11-1 415-33144-L Leg assembly – main landing gear upper (left) 337.75
13 11-1 415-33144-R Leg assembly – main landing gear upper (right) 337.75
14 12-5 F33204-L Leg assembly – main landing gear, lower, left or right 692.61
F33204-R
14 12-1 F33221-L Leg assembly – main landing gear, upper, left or right 586.05
F33221-R
41 25 A1233A1 Lens – clear 69.78
41 25 A1233A3 Lens – green, wing lite, right 69.9
41 25 A1233A2 Lens – red, wing lite, left 69.9
