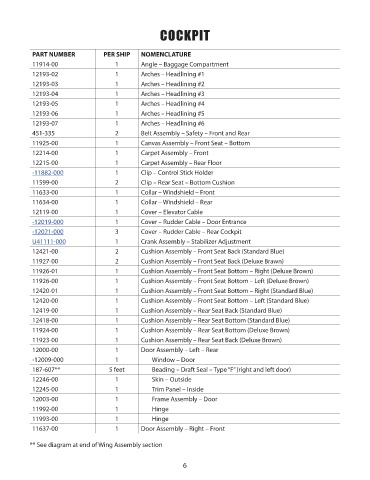

Page 9 - Piper PA-16 Clipper Parts Catalog

COCKPIT

PART NUMBER PER SHIP NOMENCLATURE PRICE
11914-00 1 Angle – Baggage Compartment NM!
12193-02 1 Arches – Headlining #1 NM!
12193-03 1 Arches – Headlining #2 NM!
12193-04 1 Arches – Headlining #3 NM!
12193-05 1 Arches – Headlining #4 NM!
12193-06 1 Arches – Headlining #5 NM!

12193-07 1 Arches – Headlining #6 NM!
451-335 2 Belt Assembly – Safety – Front and Rear NM!
11925-00 1 Canvas Assembly – Front Seat – Bottom NM!
12214-00 1 Carpet Assembly – Front NM!
12215-00 1 Carpet Assembly – Rear Floor NM!
-11882-000 1 Clip – Control Stick Holder 7.16
11599-00 2 Clip – Rear Seat – Bottom Cushion NM!
11633-00 1 Collar – Windshield – Front NM!
11634-00 1 Collar – Windshield – Rear NM!
12119-00 1 Cover – Elevator Cable NM!
-12019-000 1 Cover – Rudder Cable – Door Entrance 15.92
-12021-000 3 Cover – Rudder Cable – Rear Cockpit 35.02
U41111-000 1 Crank Assembly – Stabilizer Adjustment 126.81
12421-00 2 Cushion Assembly – Front Seat Back (Standard Blue) NM!
11927-00 2 Cushion Assembly – Front Seat Back (Deluxe Brawn) NM!
11926-01 1 Cushion Assembly – Front Seat Bottom – Right (Deluxe Brown) NM!
11926-00 1 Cushion Assembly – Front Seat Bottom – Left (Deluxe Brown) NM!
12420-01 1 Cushion Assembly – Front Seat Bottom – Right (Standard Blue) NM!
12420-00 1 Cushion Assembly – Front Seat Bottom – Left (Standard Blue) NM!
12419-00 1 Cushion Assembly – Rear Seat Back (Standard Blue) NM!
12418-00 1 Cushion Assembly – Rear Seat Bottom (Standard Blue) NM!
11924-00 1 Cushion Assembly – Rear Seat Bottom (Deluxe Brown) NM!
11923-00 1 Cushion Assembly – Rear Seat Back (Deluxe Brown) NM!
12000-00 1 Door Assembly – Left – Rear NM!
-12009-000 1 Window – Door NM!
187-607** 5 feet Beading – Draft Seal – Type “F” (right and left door) NM!
12246-00 1 Skin – Outside NM!
12245-00 1 Trim Panel – Inside NM!

12003-00 1 Frame Assembly – Door NM!
11992-00 1 Hinge NM!
11993-00 1 Hinge NM!
11637-00 1 Door Assembly – Right – Front NM!

** See diagram at end of Wing Assembly section
