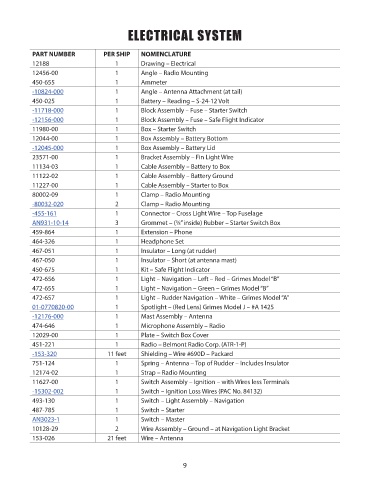

Page 12 - Piper PA-16 Clipper Parts Catalog

ELECTRICAL SYSTEM

PART NUMBER PER SHIP NOMENCLATURE PRICE
12188 1 Drawing – Electrical NM!
12456-00 1 Angle – Radio Mounting NM!
450-655 1 Ammeter NM!
-10824-000 1 Angle – Antenna Attachment (at tail) 8.33
450-025 1 Battery – Reading – S-24-12 Volt NM!
-11718-000 1 Block Assembly – Fuse – Starter Switch 61.62
-12156-000 1 Block Assembly – Fuse – Safe Flight Indicator 48.54
11980-00 1 Box – Starter Switch NM!
12044-00 1 Box Assembly – Battery Bottom NM!
-12045-000 1 Box Assembly – Battery Lid 151.06
23571-00 1 Bracket Assembly – Fin Light Wire NM!
11134-03 1 Cable Assembly – Battery to Box NM!
11122-02 1 Cable Assembly – Battery Ground NM!
11227-00 1 Cable Assembly – Starter to Box NM!
80002-09 1 Clamp – Radio Mounting NM!
-80032-020 2 Clamp – Radio Mounting 23.01
-455-161 1 Connector – Cross Light Wire – Top Fuselage 0.92
5
AN931-10-14 3 Grommet – ( ⁄8” inside) Rubber – Starter Switch Box 2
459-864 1 Extension – Phone NM!
464-326 1 Headphone Set NM!
467-051 1 Insulator – Long (at rudder) NM!
467-050 1 Insulator – Short (at antenna mast) NM!
450-675 1 Kit – Safe Flight Indicator NM!
472-656 1 Light – Navigation – Left – Red – Grimes Model “B” NM!
472-655 1 Light – Navigation – Green – Grimes Model “B” NM!
472-657 1 Light – Rudder Navigation – White – Grimes Model “A” NM!
01-0770820-00 1 Spotlight – (Red Lens) Grimes Model J – #A 1425 198.12
-12176-000 1 Mast Assembly – Antenna 39.19
474-646 1 Microphone Assembly – Radio NM!
12029-00 1 Plate – Switch Box Cover NM!
451-221 1 Radio – Belmont Radio Corp. (ATR-1-P) NM!
-153-320 11 feet Shielding – Wire #690D – Packard 1.62
751-124 1 Spring – Antenna – Top of Rudder – Includes Insulator NM!
12174-02 1 Strap – Radio Mounting NM!
11627-00 1 Switch Assembly – Ignition – with Wires less Terminals NM!
-15302-002 1 Switch – Ignition Loss Wires (PAC No. 84132) 565.04
493-130 1 Switch – Light Assembly – Navigation NM!
487-785 1 Switch – Starter NM!
AN3023-1 1 Switch – Master 400
10128-29 2 Wire Assembly – Ground – at Navigation Light Bracket NM!
153-026 21 feet Wire – Antenna NM!

9
