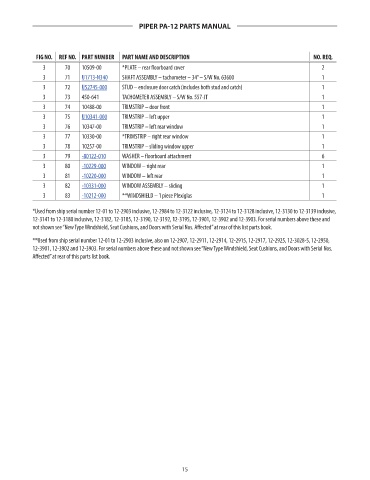

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
3 70 10509-00 *PLATE – rear floorboard cover 2 NM!
3 71 U1713-N340 SHAFT ASSEMBLY – tachometer – 34” – S/W No. 63600 1 166.15
3 72 U52745-000 STUD – enclosure door catch (includes both stud and catch) 1 5.07
3 73 450-641 TACHOMETER ASSEMBLY – S/W No. 557-JT 1 NM!
3 74 10488-00 TRIMSTRIP – door front 1 NM!
3 75 U10341-000 TRIMSTRIP – left upper 1 74.69
3 76 10347-00 TRIMSTRIP – left rear window 1 NM!
3 77 10330-00 *TRIMSTRIP – right rear window 1 NM!
3 78 10257-00 TRIMSTRIP – sliding window upper 1 NM!
3 79 -80122-010 WASHER – floorboard attachment 6 4.81
3 80 -10229-000 WINDOW – right rear 1 51.23
3 81 -10220-000 WINDOW – left rear 1 58.66

3 82 -10331-000 WINDOW ASSEMBLY – sliding 1 54.95
3 83 -10212-000 **WINDSHIELD – 1 piece Plexiglas 1 331.9

*Used from ship serial number 12-01 to 12-2903 inclusive, 12-2984 to 12-3122 inclusive, 12-3124 to 12-3128 inclusive, 12-3130 to 12-3139 inclusive,
12-3141 to 12-3180 inclusive, 12-3182, 12-3185, 12-3190, 12-3192, 12-3195, 12-3901, 12-3902 and 12-3903. For serial numbers above these and
not shown see “New Type Windshield, Seat Cushions, and Doors with Serial Nos. Affected” at rear of this list parts book.

**Used from ship serial number 12-01 to 12-2903 inclusive, also on 12-2907, 12-2911, 12-2914, 12-2915, 12-2917, 12-2925, 12-3028-S, 12-2950,
12-3901, 12-3902 and 12-3903. For serial numbers above these and not shown see “New Type Windshield, Seat Cushions, and Doors with Serial Nos.
Affected” at rear of this parts list book.
