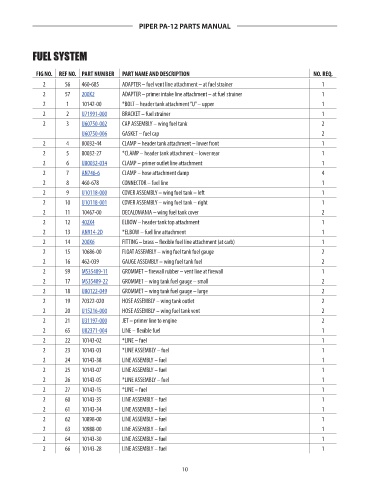

PIPER PA-12 PARTS MANUAL
FUEL SYSTEM
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
2 56 460-685 ADAPTER – fuel vent line attachment – at fuel strainer 1 NM!
2 57 200X2 ADAPTER – primer intake line attachment – at fuel strainer 1 2.11
2 1 10142-00 *BOLT – header tank attachment “U” – upper 1 NM!
2 2 U71991-000 BRACKET – fuel strainer 1 77.83
2 3 U60750-002 CAP ASSEMBLY – wing fuel tank 2 129.32
U60750-006 GASKET – fuel cap 2 1.97
2 4 80032-44 CLAMP – header tank attachment – lower front 1 NM!
2 5 80032-27 *CLAMP – header tank attachment – lower rear 1 NM!
2 6 U80032-034 CLAMP – primer outlet line attachment 1 25.91
2 7 AN746-6 CLAMP – hose attachment damp 4 1.79
2 8 460-678 CONNECTOR – fuel line 1 NM!
2 9 U10118-000 COVER ASSEMBLY – wing fuel tank – left 1 689.02
2 10 U10118-001 COVER ASSEMBLY – wing fuel tank – right 1 689.02
2 11 10467-00 DECALOMANIA – wing fuel tank cover 2 NM!
2 12 402X4 ELBOW – header tank top attachment 1 5.08
2 13 AN914-2D *ELBOW – fuel line attachment 1 24
2 14 200X6 FITTING – brass – flexible fuel line attachment (at carb) 1 2.76
2 15 10686-00 FLOAT ASSEMBLY – wing fuel tank fuel gauge 2 NM!
2 16 462-039 GAUGE ASSEMBLY – wing fuel tank fuel 2 NM!
2 59 MS35489-11 GROMMET – firewall rubber – vent line at firewall 1 0.6
2 17 MS35489-22 GROMMET – wing tank fuel gauge – small 2 2.34
2 18 U80122-049 GROMMET – wing tank fuel gauge – large 2 5.7
2 19 70322-020 HOSE ASSEMBLY – wing tank outlet 2 NM!
2 20 U15216-000 HOSE ASSEMBLY – wing fuel tank vent 2 305.42
2 21 U31197-000 JET – primer line to engine 2 59.87
2 65 U82371-004 LINE – flexible fuel 1 19.64
2 22 10143-02 *LINE – fuel 1 NM!
2 23 10143-03 *LINE ASSEMBLY – fuel 1 NM!
2 24 10143-38 LINE ASSEMBLY – fuel 1 NM!
2 25 10143-07 LINE ASSEMBLY – fuel 1 NM!
2 26 10143-05 *LINE ASSEMBLY – fuel 1 NM!
2 27 10143-15 *LINE – fuel 1 NM!
2 60 10143-35 LINE ASSEMBLY – fuel 1 NM!
2 61 10143-34 LINE ASSEMBLY – fuel 1 NM!
2 62 10898-00 LINE ASSEMBLY – fuel 1 NM!
2 63 10988-00 LINE ASSEMBLY – fuel 1 NM!
2 64 10143-30 LINE ASSEMBLY – fuel 1 NM!
2 66 10143-28 LINE ASSEMBLY – fuel 1 NM!
10
