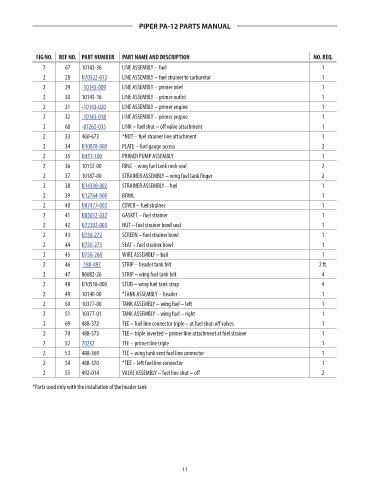

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
2 67 10143-36 LINE ASSEMBLY – fuel 1 NM!
2 28 U70322-012 LINE ASSEMBLY – fuel strainer to carburetor 1 183.92
2 29 -10143-009 LINE ASSEMBLY – primer inlet 1 112.36
2 30 10143-16 LINE ASSEMBLY – primer outlet 1 NM!
2 31 -10143-020 LINE ASSEMBLY – primer engine 1 35.99
2 32 -10143-018 LINE ASSEMBLY – primer engine 1 67.41
2 68 -81262-035 LINK – fuel shut – off valve attachment 1 28.28
2 33 460-673 *NUT – fuel strainer line attachment 1 NM!
2 34 U10878-000 PLATE – fuel gauge access 2 19.08
2 35 U451-100 PRIMER PUMP ASSEMBLY 1 419.22
2 36 10132-00 RING – wing fuel tank neck seal 2 NM!
2 37 10187-00 STRAINER ASSEMBLY – wing fuel tank finger 2 NM!

2 38 U14330-002 STRAINER ASSEMBLY – fuel 1 300.56
2 39 U12764-000 BOWL 1 136.73
2 40 U87477-002 COVER – fuel strainer 1 122.83
2 41 U85012-032 GASKET – fuel strainer 1 4.19
2 42 U72302-003 NUT – fuel strainer bowl seat 1 21.34
2 43 U750-272 SCREEN – fuel strainer bowl 1 2.89
2 44 U750-273 SEAT – fuel strainer bowl 1 18.9
2 45 U750-268 WIRE ASSEMBLY – bail 1 37.85
2 46 -180-497 STRIP – header tank felt 2 ft. 4.67
2 47 86082-26 STRIP – wing fuel tank felt 4 NM!
2 48 U10518-000 STUD – wing fuel tank strap 4 NM!
2 49 10140-00 *TANK ASSEMBLY – header 1 NM!
2 50 10377-00 TANK ASSEMBLY – wing fuel – left 1 NM!
2 51 10377-01 TANK ASSEMBLY – wing fuel – right 1 NM!
2 69 488-372 TEE – fuel line connector triple – at fuel shut-off valves 1 NM!
2 70 488-373 TEE – triple inverted – primer line attachment at fuel strainer 1 NM!
2 52 702X2 TEE – primer line triple 1 39.12
2 53 488-369 TEE – wing tank vent fuel line connector 1 NM!
2 54 488-370 *TEE – left fuel line connector 1 NM!
2 55 492-014 VALVE ASSEMBLY – fuel line shut – off 2 NM!

*Parts used only with the installation of the header tank

11
