FORNEY AIRCOUPE PARTS MANUAL

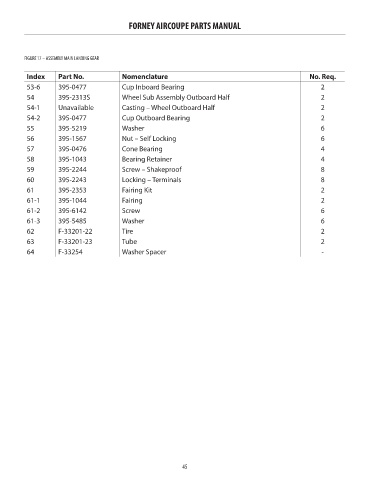

FIGURE 17 – ASSEMBLY MAIN LANDING GEAR
Index Part No. Nomenclature No. Req. Price
53-6 395-0477 Cup Inboard Bearing 2 NM!
54 395-2313S Wheel Sub Assembly Outboard Half 2 NM!
54-1 Unavailable Casting – Wheel Outboard Half 2 NM!
54-2 395-0477 Cup Outboard Bearing 2 NM!
55 395-5219 Washer 6 NM!
56 395-1567 Nut – Self Locking 6 NM!
57 395-0476 Cone Bearing 4 NM!
58 395-1043 Bearing Retainer 4 NM!
59 395-2244 Screw – Shakeproof 8 NM!
60 395-2243 Locking – Terminals 8 NM!
61 395-2353 Fairing Kit 2 NM!
61-1 395-1044 Fairing 2 NM!
61-2 395-6142 Screw 6 NM!
61-3 395-5485 Washer 6 NM!
62 F-33201-22 Tire 2 NM!
63 F-33201-23 Tube 2 NM!
64 F-33254 Washer Spacer - NM!
45
