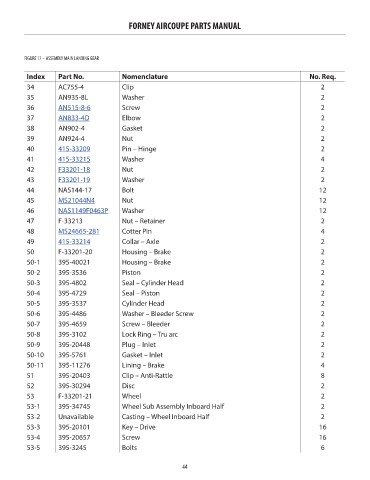

Page 46 - Forney Aircoupe Parts Manual
P. 46
FORNEY AIRCOUPE PARTS MANUAL
FIGURE 17 – ASSEMBLY MAIN LANDING GEAR
Index Part No. Nomenclature No. Req. Price
34 AC755-4 Clip 2 NM!
35 AN935-8L Washer 2 NM!
36 AN515-8-6 Screw 2 0.15
37 AN833-4D Elbow 2 11.44
38 AN902-4 Gasket 2 NM!
39 AN924-4 Nut 2 NM!
40 415-33209 Pin – Hinge 2 359.68
41 415-33215 Washer 4 9.02
42 F33201-18 Nut 2 7.72
43 F33201-19 Washer 2 5.14
44 NAS144-17 Bolt 12 NM!
45 MS21044N4 Nut 12 0.3
46 NAS1149F0463P Washer 12 0.06
47 F-33213 Nut – Retainer 2 NM!
48 MS24665-281 Cotter Pin 4 0.08
49 415-33214 Collar – Axle 2 30.49
50 F-33201-20 Housing – Brake 2 NM!
50-1 395-40021 Housing – Brake 2 NM!
50-2 395-3536 Piston 2 NM!
50-3 395-4802 Seal – Cylinder Head 2 NM!
50-4 395-4729 Seal – Piston 2 NM!
50-5 395-3537 Cylinder Head 2 NM!
50-6 395-4486 Washer – Bleeder Screw 2 NM!
50-7 395-4659 Screw – Bleeder 2 NM!
50-8 395-3102 Lock Ring – Tru arc 2 NM!
50-9 395-20448 Plug – Inlet 2 NM!
50-10 395-5761 Gasket – Inlet 2 NM!
50-11 395-11276 Lining – Brake 4 NM!
51 395-20403 Clip – Anti-Rattle 8 NM!
52 395-30294 Disc 2 NM!
53 F-33201-21 Wheel 2 NM!
53-1 395-34745 Wheel Sub Assembly Inboard Half 2 NM!
53-2 Unavailable Casting – Wheel Inboard Half 2 NM!
53-3 395-20101 Key – Drive 16 NM!
53-4 395-20657 Screw 16 NM!
53-5 395-3245 Bolts 6 NM!
44
