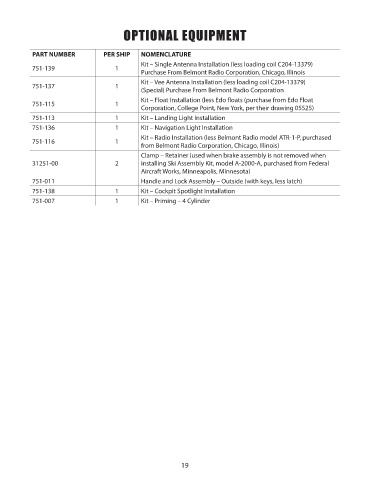

Page 22 - Piper PA-16 Clipper Parts Catalog
P. 22
OPTIONAL EQUIPMENT
PART NUMBER PER SHIP NOMENCLATURE PRICE
Kit – Single Antenna Installation (less loading coil C204-13379)
751-139 1 NM!
Purchase From Belmont Radio Corporation, Chicago, Illinois
Kit – Vee Antenna Installation (less loading coil C204-13379)
751-137 1 NM!
(Special) Purchase From Belmont Radio Corporation
Kit – Float Installation (less Edo floats (purchase from Edo Float
751-115 1 NM!
Corporation, College Point, New York, per their drawing 05525)
751-113 1 Kit – Landing Light Installation NM!
751-136 1 Kit – Navigation Light Installation NM!
Kit – Radio Installation (less Belmont Radio model ATR-1-P, purchased
751-116 1 NM!
from Belmont Radio Corporation, Chicago, Illinois)
Clamp – Retainer (used when brake assembly is not removed when
31251-00 2 installing Ski Assembly Kit, model A-2000-A, purchased from Federal NM!
Aircraft Works, Minneapolis, Minnesota)
751-011 Handle and Lock Assembly – Outside (with keys, less latch) NM!
751-138 1 Kit – Cockpit Spotlight Installation NM!
751-007 1 Kit – Priming – 4 Cylinder NM!
19
