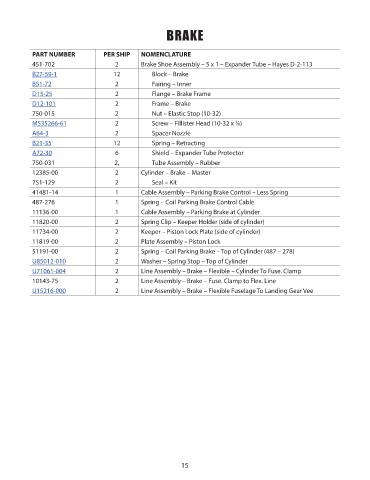

Page 18 - Piper PA-16 Clipper Parts Catalog

BRAKE

PART NUMBER PER SHIP NOMENCLATURE PRICE
451-702 2 Brake Shoe Assembly – 5 x 1 – Expander Tube – Hayes D-2-113 NM!
B27-59-1 12 Block – Brake 73.02
B51-72 2 Fairing – Inner 107.93
D15-25 2 Flange – Brake Frame 50.8
D12-101 2 Frame – Brake 28.13
750-015 2 Nut – Elastic Stop (10-32) NM!

3
MS35266-61 2 Screw – Fillister Head (10-32 x ⁄8) 0.38
A64-3 2 Spacer Nozzle 6.15
B21-35 12 Spring – Retracting 9.32
A72-30 6 Shield – Expander Tube Protector 29.54
750-031 2, Tube Assembly – Rubber NM!
12385-00 2 Cylinder – Brake – Master NM!
751-129 2 Seal – Kit NM!
41481-14 1 Cable Assembly – Parking Brake Control – Less Spring NM!
487-276 1 Spring – Coil Parking Brake Control Cable NM!
11136-00 1 Cable Assembly – Parking Brake at Cylinder NM!
11820-00 2 Spring Clip – Keeper Holder (side of cylinder) NM!
11734-00 2 Keeper – Piston Lock Plate (side of cylinder) NM!
11819-00 2 Plate Assembly – Piston Lock NM!
51191-00 2 Spring – Coil Parking Brake – Top of Cylinder (487 – 278) NM!
U85012-010 2 Washer – Spring Stop – Top of Cylinder 5.64
U71061-004 2 Line Assembly – Brake – Flexible – Cylinder To Fuse. Clamp 178.08
10143-75 2 Line Assembly – Brake – Fuse. Clamp to Flex. Line NM!
U15216-000 2 Line Assembly – Brake – Flexible Fuselage To Landing Gear Vee 305.42
