View All Elbows

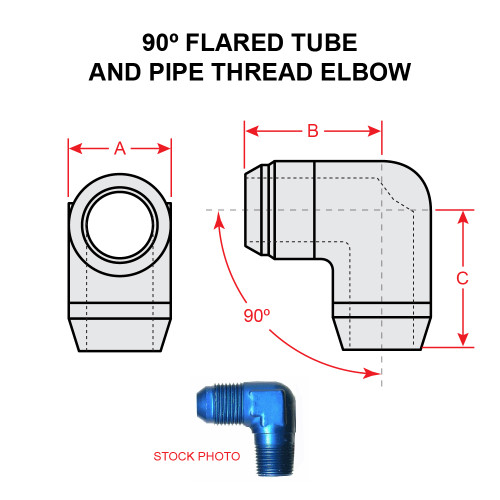

AN822-12D 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Aluminum Tube Thread: 1-1/16-12 Pipe Thread: 3/4-14 Tubing Outer Diameter: 3/4 inch Dimensions: A: 1-1/16 inch B: 1-21/32 inch C: 1-19/32 inch

AN822-16 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 1-5/16-12 Pipe Thread: 1-11-1/2 Tubing Outer Diameter: 1 inch Dimensions: A: 1-5/16 inch B: 1-13/16 inch C: 1-31/32 inch

AN823-12 45 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

45 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 1-1/16-12 Pipe Thread: 3/4-14 Tubing Outer Diameter: 3/4 inch Dimensions: A: 1-1/16 inch B: 1-17/64 inch C: 1-3/16 inch

AN823-2 45 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

45 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 5/16-24 Pipe Thread: 1/8-27 Tubing Outer Diameter: 1/8 inch Dimensions: A: 5/16 inch B: 41/64 inch C: 1/2 inch

AN823-6 45 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

45 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 9/16-18 Pipe Thread: 1/4-18 Tubing Outer Diameter: 3/8 inch Dimensions: A: 9/16 inch B: 13/16 inch C: 27/32 inch

AN833-8D 90 DEGREE FLARED TUBE AND BULKHEAD UNIVERSAL ELBOW

90 degree flared tube and bulkhead universal elbow Material: Aluminum Thread: 3/4-16 Tubing Outer Diameter: 1/2 inch Dimensions: A: 3/4 inch B: 1-11/32 inch C: 2-3/32 inch

AN844-12D 45 DEGREE PIPE TO HOSE ELBOW

45 degree pipe to hose elbow Material: Aluminum Pipe Thread: 3/4-14 Hose Inside Diameter: 3/4 inch Dimensions: A: 1-13/64 inch B: 1-13/16 inch C: 1-1/8 inch

AN915-8D 45 DEGREE PIPE ELBOW

45 degree pipe elbow Material: Aluminum Thread: 1-11-1/2 Dimensions: A: 1-3/4 inch B: 1-23/32 inch C: 1-1/8 inch D: 1-11/16 inch diameter

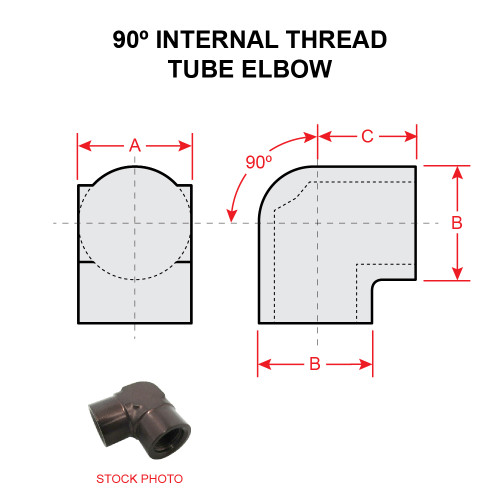

AN939-5D 90 DEGREE INTERNAL THREAD TUBE ELBOW

90 degree internal thread tube elbow Material: Aluminum Thread: 1/2-20 Tube Outside Diameter: 5/16 inch Dimensions: A: 3/4 inch B: 3/4 inch diameter C: 13/16 inch

MS20822-3D 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Aluminum Tube Thread: 3/8-24 Pipe Thread: 1/8-27 Tubing Outer Diameter: 3/16 inch Supercedes part numbers AN822-3D, 458-893 Dimensions: A: 3/8 inch B: 53/64 inch C: 23/32 inch

3400X6 WEATHERHEAD 90 DEGREE STREET ELBOW

Weatherhead 90° street elbow, internal-external thread Material: Brass Male Pipe Thread: 3/8-18 Female Pipe Thread: 3/8-18 Dimensions: A: 23/32 inch B: 13/16 inch C: 7/16 inch D: 63/64 inch

AN822-3 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 3/8-24 Pipe Thread: 1/8-27 Tubing Outer Diameter: 3/16 inch Dimensions: A: 3/8 inch B: 53/64 inch C: 23/32 inch

AN914-4D 90 DEGREE INTERNAL-EXTERNAL PIPE THREAD ELBOW

90 degree internal and external pipe thread elbow Material: Aluminum Thread: 1/2-14 Dimensions: A: 1-3/16 inch B: 1-39/64 inch C: 1-11/64 inch D: 1-5/32 inch diameter

1375 WEATHERHEAD DOUBLE ELBOW

AN821-12D 90 DEGREE FLARED TUBE ELBOW

90 degree flared tube elbow Material: Aluminum Thread: 1-1/16-12 Tubing Outer Diameter: 3/4 inch Dimensions: A: 1-21/32 inch B: 1-1/16 inch

AN822-5 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 1/2-20 Pipe Thread: 1/8-27 Tubing Outer Diameter: 5/16 inch Dimensions: A: 1/2 inch B: 61/64 inch C: 25/32 inch
