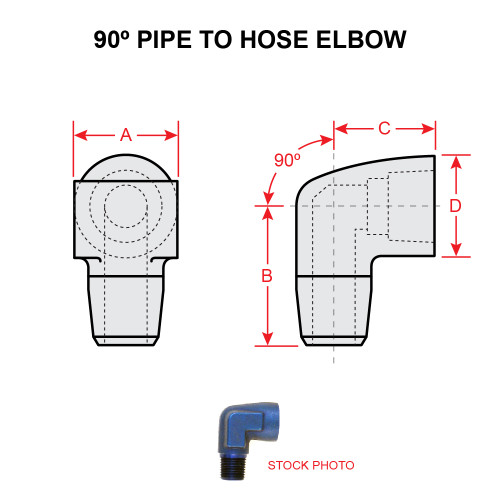

AN842-10 90 DEGREE PIPE TO HOSE ELBOW

90 degree pipe to hose elbow Material: Brass Pipe Thread: 1/2-14 Hose Inside Diameter: 5/8 inch Dimensions: A: 1-13/64 inch B: 2-11/64 inch C: 15/16 inch

3500X4 WEATHERHEAD 90 DEGREE PIPE ELBOW

Weatherhead 90° pipe elbow, internal thread Material: Brass Female Pipe Thread: 1/4-18 Dimensions: A: 25/32 inch B: 11/16 inch C: 7/16 inch

352X5 WEATHERHEAD 45 DEGREE MALE ELBOW

Weatherhead inverted flare 45° male elbow Tube Outside Diameter: 5/16 inch Male Pipe Thread: 1/2-20 Dimensions: A: 1 inch B: 5/8 inch C: 9/16 inch D: 13/64 inch E: 7/32 inch

AN821-6D 90 DEGREE FLARED TUBE ELBOW

90 degree flared tube elbow Material: Aluminum Thread: 9/16-18 Tubing Outer Diameter: 3/8 inch Dimensions: A: 1-1/16 inch B: 9/16 inch

AN823-16 45 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

45 degree flared tube and pipe thread elbow Material: Steel Tube Thread: 1-5/16-12 Pipe Thread: 1-11-1/2 Tubing Outer Diameter: 1 inch Dimensions: A: 1-5/16 inch B: 1-29/64 inch C: 1-15/32 inch

AN837-4D 45 DEGREE FLARED TUBE AND UNIVERSAL ELBOW

45 degree flared tube and universal elbow Material: Aluminum Thread: 7/16-20 Tubing Outer Diameter: 1/4 inch Dimensions: A: 7/16 inch B: 45/64 inch C: 1-17/32 inch

MS20822-2D 90 DEGREE FLARED TUBE AND PIPE THREAD ELBOW

90 degree flared tube and pipe thread elbow Material: Aluminum Tube Thread: 5/16-24 Pipe Thread: 1/8-27 Tubing Outer Diameter: 1/8 inch Dimensions: A: 5/16 inch B: 49/64 inch C: 23/32 inch

AN776-5D 90 DEGREE UNIVERSAL ELBOW

90 degree universal elbow Material: Aluminum Thread: 1/2-20 Tubing Outer Diameter: 5/16 inch Dimensions: A: 1/2 inch diameter B: 13/16 inch diameter C: 3/4 inch D: 1-1/8 inch

AN842-8 90 DEGREE PIPE TO HOSE ELBOW

90 degree pipe to hose elbow Material: Brass Pipe Thread: 3/8-18 Hose Inside Diameter: 1/2 inch Dimensions: A: 1-3/16 inch B: 1-63/64 inch C: 3/4 inch

AN921-4D 90 DEGREE FLARED TUBE UNIVERSAL ELBOW

90 flared tube universal elbow Material: Aluminum Thread: 7/16-20 Tubing Outside Diameter: 1/4 inch Dimensions: A: 1-3/64 inch B: 7/16 inch C: 11/32 inch diameter D: 55/64 inch

3500X2 WEATHERHEAD 90 DEGREE PIPE ELBOW

Weatherhead 90° pipe elbow, internal thread Material: Brass Female Pipe Thread: 1/8-27 Dimensions: A: 35/64 inch B: 9/16 inch C: 11/32 inch

434X6 WEATHERHEAD 90 DEGREE ELBOW

AN778-10D 45 DEGREE UNIVERSAL ELBOW

90 degree universal elbow Material: Aluminum Thread: 7/8-14 Tubing Outer Diameter: 7/8 inch Dimensions: A: 7/8 inch diameter B: 1-3/8 inch diameter C: 1-3/8 inch D: 1-15/32 inch

AN821-8D 90 DEGREE FLARED TUBE ELBOW

90 degree flared tube elbow Material: Aluminum Thread: 3/4-16 Tubing Outer Diameter: 1/2 inch Dimensions: A: 1-1/4 inch B: 3/4 inch
