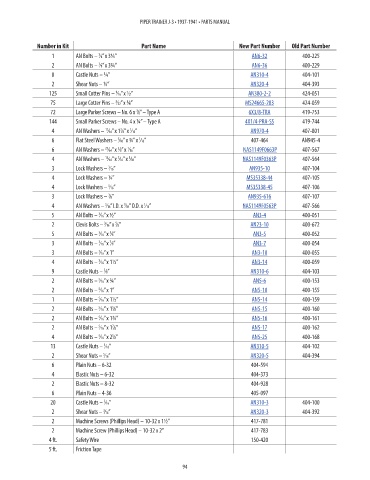

Page 102 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

Number in Kit Part Name New Part Number Old Part Number PRICE
3
1 AN Bolts – ⁄8” x 3¼” AN6-32 400-225 1.56
2 AN Bolts – ⁄8” x 3¾” AN6-36 400-229 3.38
3
8 Castle Nuts – ¼” AN310-4 404-101 1.6
2 Shear Nuts – ¼” AN320-4 404-393 1.44
125 Small Cotter Pins – ⁄16” x ½” AN380-2-2 424-051 0.04
1
3
75 Large Cotter Pins – ⁄32” x ¾” MS24665-283 424-059 0.04
72 Large Parker Screws – No. 6 x ⁄8” – Type A 6X3/8-TRA 419-753 0.06
3
144 Small Parker Screws – No. 4 x ¼” – Type A 4X1/4-PRA-SS 419-744 0.02
4 AN Washers – ⁄64” x 1 ⁄8” x ⁄16” AN970-4 407-801 0.28
17
3
1
1
5
6 Flat Steel Washers – ⁄16” x ¾” x ⁄16” 407-464 AN945-4 NM!
6 AN Washers – ⁄64” x ⁄8” x ⁄16” NAS1149F0663P 407-567 0.11
5
1
25
4 AN Washers – ⁄64” x ⁄16” x ⁄16” NAS1149F0363P 407-564 0.04
13
7
1
3 Lock Washers – ⁄16” AN935-10 407-104 0.05
3
4 Lock Washers – ¼” MS35338-44 407-105 0.08
5
4 Lock Washers – ⁄16” MS35338-45 407-106 0.06
3 Lock Washers – ⁄8” AN935-616 407-107 0.21
3
4 AN Washers – ⁄16” I.D. x ⁄16” O.D. x ⁄16” NAS1149F0563P 407-566 0.08
5
9
1
5 AN Bolts – ⁄16” x ½” AN3-4 400-051 0.6
3
3
5
2 Clevis Bolts – ⁄16” x ⁄8” AN23-10 400-672 1.82
5 AN Bolts – ⁄16” x ⁄8” AN3-5 400-052 0.6
5
3
7
3 AN Bolts – ⁄16” x ⁄8” AN3-7 400-054 1
3
3 AN Bolts – ⁄16” x 1” AN3-10 400-055 0.72
3
4 AN Bolts – ⁄16” x 1½” AN3-14 400-059 0.66
3
3
9 Castle Nuts – ⁄8” AN310-6 404-103 1.8
2 AN Bolts – ⁄16” x ¾” AN5-6 400-153 0.8
5
5
2 AN Bolts – ⁄16” x 1” AN5-10 400-155 1
1 AN Bolts – ⁄16” x 1½” AN5-14 400-159 0.9
5
2 AN Bolts – ⁄16” x 1 ⁄8” AN5-15 400-160 0.96
5
5
2 AN Bolts – ⁄16” x 1¾” AN5-16 400-161 1.03
5
5
2 AN Bolts – ⁄16” x 1 ⁄8” AN5-17 400-162 1.64
7
4 AN Bolts – ⁄16” x 2 ⁄8” AN5-25 400-168 1.22
5
5
13 Castle Nuts – ⁄16” AN310-5 404-102 2
5
2 Shear Nuts – ⁄16” AN320-5 404-394 1
5
6 Plain Nuts – 6-32 404-594 NM!
4 Elastic Nuts – 6-32 404-373 NM!
2 Elastic Nuts – 8-32 404-928 NM!
6 Plain Nuts – 4-36 405-097 NM!
20 Castle Nuts – ⁄16” AN310-3 404-100 1.5
3
3
2 Shear Nuts – ⁄16” AN320-3 404-392 1
2 Machine Screws (Phillips Head) – 10-32 x 1½” 417-781 NM!
2 Machine Screw (Phillips Head) – 10-32 x 2” 417-783 NM!
4 ft. Safety Wire 150-420 NM!
5 ft. Friction Tape X
