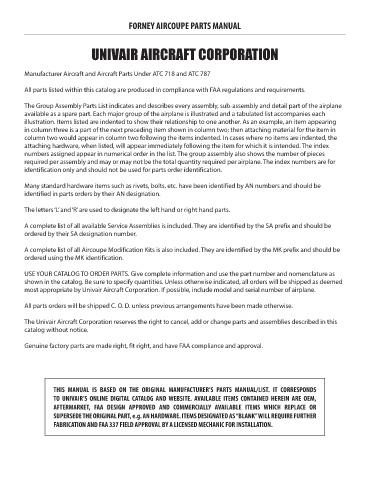

FORNEY AIRCOUPE PARTS MANUAL

UNIVAIR AIRCRAFT CORPORATION

Manufacturer Aircraft and Aircraft Parts Under ATC 718 and ATC 787

All parts listed within this catalog are produced in compliance with FAA regulations and requirements.

The Group Assembly Parts List indicates and describes every assembly, sub-assembly and detail part of the airplane
available as a spare part. Each major group of the airplane is illustrated and a tabulated list accompanies each
illustration. Items listed are indented to show their relationship to one another. As an example, an item appearing
in column three is a part of the next preceding item shown in column two; then attaching material for the item in
column two would appear in column two following the items indented. In cases where no items are indented, the
attaching hardware, when listed, will appear immediately following the item for which it is intended. The index
numbers assigned appear in numerical order in the list. The group assembly also shows the number of pieces
required per assembly and may or may not be the total quantity required per airplane. The index numbers are for
identification only and should not be used for parts order identification.

Many standard hardware items such as rivets, bolts, etc. have been identified by AN numbers and should be
identified in parts orders by their AN designation.

The letters ‘L’ and ‘R’ are used to designate the left hand or right hand parts.

A complete list of all available Service Assemblies is included. They are identified by the SA prefix and should be
ordered by their SA designation number.

A complete list of all Aircoupe Modification Kits is also included. They are identified by the MK prefix and should be
ordered using the MK identification.

USE YOUR CATALOG TO ORDER PARTS. Give complete information and use the part number and nomenclature as
shown in the catalog. Be sure to specify quantities. Unless otherwise indicated, all orders will be shipped as deemed
most appropriate by Univair Aircraft Corporation. If possible, include model and serial number of airplane.

All parts orders will be shipped C. O. D. unless previous arrangements have been made otherwise.

The Univair Aircraft Corporation reserves the right to cancel, add or change parts and assemblies described in this
catalog without notice.

Genuine factory parts are made right, fit right, and have FAA compliance and approval.

THIS MANUAL IS BASED ON THE ORIGINAL MANUFACTURER’S PARTS MANUAL/LIST. IT CORRESPONDS
TO UNIVAIR’S ONLINE DIGITAL CATALOG AND WEBSITE. AVAILABLE ITEMS CONTAINED HEREIN ARE OEM,
AFTERMARKET, FAA DESIGN APPROVED AND COMMERCIALLY AVAILABLE ITEMS WHICH REPLACE OR
SUPERSEDE THE ORIGINAL PART, e.g. AN HARDWARE. ITEMS DESIGNATED AS “BLANK” WILL REQUIRE FURTHER
FABRICATION AND FAA 337 FIELD APPROVAL BY A LICENSED MECHANIC FOR INSTALLATION.
