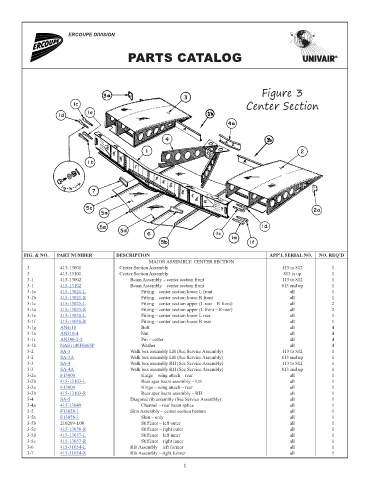

Figure 3

Center Section

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
MAJOR ASSEMBLY: CENTER SECTION
3 415-13001 Center Section Assembly 113 to 812 1 NM!
3 415-13101 Center Section Assembly 813 is up 1 NM!
3-1 415-13002 Beam Assembly – center section front 113 to 812 1 NM!
3-1 415-13102 Beam Assembly – center section front 813 and up 1 16139.97
3-1a 415-13021-L Fitting – center section lower L front all 1 370.88
3-1b 415-13021-R Fitting – center section lower R front all 1 370.88
3-1c 415-13025-L Fitting – center section upper (L rear – R front) all 2 370.88
3-1d 415-13025-R Fitting – center section upper (L front – R rear) all 2 370.88
3-1e 415-13038-L Fitting – center section lower L rear all 1 370.88
3-1f 415-13038-R Fitting – center section lower R rear all 1 370.88
3-1g AN4-10 Bolt all 4 0.78
3-1h AN310-4 Nut all 4 1.6
3-1i AN380-2-2 Pin – cotter all 4 0.04
3-1k NAS1149F0463P Washer all 4 0.06
3-2 SA-3 Walk box assembly LH (See Service Assembly) 113 to 812 1 3820.39
3-2 SA-3A Walk box assembly LH (See Service Assembly) 813 and up 1 3820.39
3-3 SA-4 Walk box assembly RH (See Service Assembly) 113 to 812 1 3820.39
3-3 SA-4A Walk box assembly RH (See Service Assembly) 813 and up 1 3820.39
3-2a F13009 Hinge – wing attach – rear all 1 73.31
3-2b 415-13103-L Rear spar beam assembly – LH all 1 589.5
3-3a F13009 Hinge – wing attach – rear all 1 73.31
3-3b 415-13103-R Rear spar beam assembly – RH all 1 532.15
3-4 SA-5 Diagonal rib assembly (See Service Assembly) all 1 NM!
3-4a 415-13049 Channel – rear beam splice all 1 117.45
3-5 F13058-1 Skin Assembly – center section bottom all 1 403.46
3-5a F13058-1 Skin – only all 1 403.46
3-5b 210269-L00 Stiffener – left outer all 1 NM!
3-5c 415-13056-R Stiffener – right outer all 1 21.68
3-5d 415-13057-L Stiffener – left inner all 1 39.58
3-5e 415-13057-R Stiffener – right inner all 1 39.58
3-6 415-31054-L Rib Assembly – left former all 1 13.07
3-7 415-31054-R Rib Assembly – right former all 1 13.07
