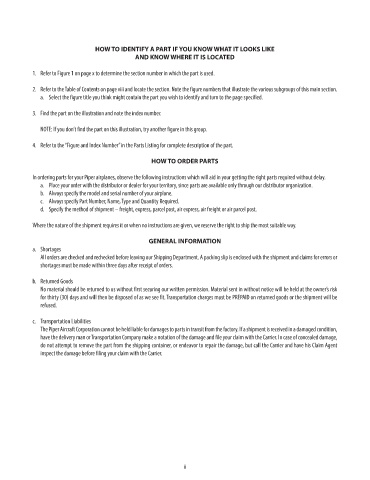

HOW TO IDENTIFY A PART IF YOU KNOW WHAT IT LOOKS LIKE
AND KNOW WHERE IT IS LOCATED

1. Refer to Figure 1 on page x to determine the section number in which the part is used.

2. Refer to the Table of Contents on page viii and locate the section. Note the figure numbers that illustrate the various subgroups of this main section.
a. Select the figure title you think might contain the part you wish to identify and turn to the page specified.

3. Find the part on the illustration and note the index number.

NOTE: If you don’t find the part on this illustration, try another figure in this group.

4. Refer to the “Figure and Index Number” in the Parts Listing for complete description of the part.

HOW TO ORDER PARTS

In ordering parts for your Piper airplanes, observe the following instructions which will aid in your getting the right parts required without delay.
a. Place your order with the distributor or dealer for your territory, since parts are available only through our distributor organization.
b. Always specify the model and serial number of your airplane.
c. Always specify Part Number, Name, Type and Quantity Required.
d. Specify the method of shipment – freight, express, parcel post, air express, air freight or air parcel post.

Where the nature of the shipment requires it or when no instructions are given, we reserve the right to ship the most suitable way.

GENERAL INFORMATION
a. Shortages
All orders are checked and rechecked before leaving our Shipping Department. A packing slip is enclosed with the shipment and claims for errors or
shortages must be made within three days after receipt of orders.

b. Returned Goods
No material should be returned to us without first securing our written permission. Material sent in without notice will be held at the owner’s risk
for thirty (30) days and will then be disposed of as we see fit. Transportation charges must be PREPAID on returned goods or the shipment will be
refused.

c. Transportation Liabilities
The Piper Aircraft Corporation cannot be held liable for damages to parts in transit from the factory. If a shipment is received in a damaged condition,
have the delivery man or Transportation Company make a notation of the damage and file your claim with the Carrier. In case of concealed damage,
do not attempt to remove the part from the shipping container, or endeavor to repair the damage, but call the Carrier and have his Claim Agent
inspect the damage before filing your claim with the Carrier.

ii
