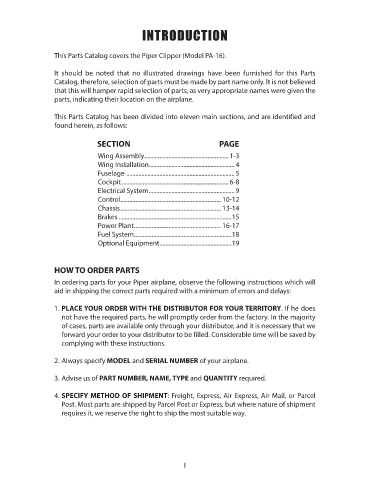

INTRODUCTION

This Parts Catalog covers the Piper Clipper (Model PA-16).

It should be noted that no illustrated drawings have been furnished for this Parts
Catalog, therefore, selection of parts must be made by part name only. It is not believed
that this will hamper rapid selection of parts, as very appropriate names were given the
parts, indicating their location on the airplane.

This Parts Catalog has been divided into eleven main sections, and are identified and
found herein, as follows:

SECTION PAGE

Wing Assembly ........................................................ 1-3
Wing Installation .........................................................4
Fuselage ........................................................................5
Cockpit ....................................................................... 6-8
Electrical System .........................................................9
Control ................................................................... 10-12
Chassis ................................................................... 13-14
Brakes ...........................................................................15
Power Plant .......................................................... 16-17
Fuel System .................................................................18
Optional Equipment ................................................19

HOW TO ORDER PARTS
In ordering parts for your Piper airplane, observe the following instructions which will
aid in shipping the correct parts required with a minimum of errors and delays:

1. PLACE YOUR ORDER WITH THE DISTRIBUTOR FOR YOUR TERRITORY. If he does
not have the required parts, he will promptly order from the factory. In the majority
of cases, parts are available only through your distributor, and it is necessary that we
forward your order to your distributor to be filled. Considerable time will be saved by
complying with these instructions.

2. Always specify MODEL and SERIAL NUMBER of your airplane.

3. Advise us of PART NUMBER, NAME, TYPE and QUANTITY required.

4. SPECIFY METHOD OF SHIPMENT: Freight, Express, Air Express, Air Mail, or Parcel
Post. Most parts are shipped by Parcel Post or Express, but where nature of shipment
requires it, we reserve the right to ship the most suitable way.
