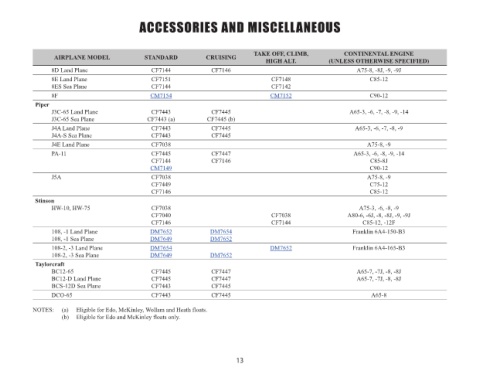

Page 18 - Piper PA-15/PA-17 Parts Catalog

ACCESSORIES AND MISCELLANEOUS

TAKE OFF, CLIMB, CONTINENTAL ENGINE
AIRPLANE MODEL STANDARD CRUISING
HIGH ALT. (UNLESS OTHERWISE SPECIFIED)
8D Land Plane CF7144 CF7146 A75-8, -8J, -9, -9J
8E Land Plane CF7151 CF7148 C85-12
8ES Sea Plane CF7144 CF7142
8F CM7154 CM7152 C90-12
Piper
J3C-65 Land Plane CF7443 CF7445 A65-3, -6, -7, -8, -9, -14
J3C-65 Sea Plane CF7443 (a) CF7445 (b)
J4A Land Plane CF7443 CF7445 A65-3, -6, -7, -8, -9
J4A-S Sea Plane CF7443 CF7445
J4E Land Plane CF7038 A75-8, -9
PA-11 CF7445 CF7447 A65-3, -6, -8, -9, -14
CF7144 CF7146 C85-8J
CM7149 C90-12
J5A CF7038 A75-8, -9
CF7449 C75-12
CF7146 C85-12
Stinson
HW-10, HW-75 CF7038 A75-3, -6, -8, -9
CF7040 CF7038 A80-6, -6J, -8, -8J, -9, -9J
CF7146 CF7144 C85-12, -12F
108, -1 Land Plane DM7652 DM7654 Franklin 6A4-150-B3
108, -1 Sea Plane DM7649 DM7652
108-2, -3 Land Plane DM7654 DM7652 Franklin 6A4-165-B3
108-2, -3 Sea Plane DM7649 DM7652
Taylorcraft
BC12-65 CF7445 CF7447 A65-7, -7J, -8, -8J
BC12-D Land Plane CF7445 CF7447 A65-7, -7J, -8, -8J
BCS-12D Sea Plane CF7443 CF7445
DCO-65 CF7443 CF7445 A65-8

NOTES: (a) Eligible for Edo, McKinley, Wollam and Heath floats.
(b) Eligible for Edo and McKinley floats only.

13
