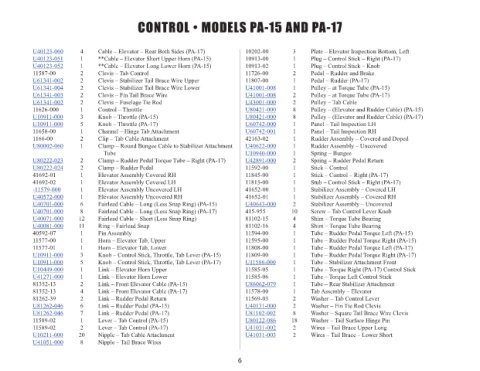

CONTROL • MODELS PA-15 AND PA-17

U40123-060 4 Cable – Elevator – Rear Both Sides (PA-17) 10202-00 3 Plate – Elevator Inspection Bottom, Left
U40123-051 1 **Cable – Elevator Short Upper Horn (PA-15) 10913-00 1 Plug – Control Stick – Right (PA-17)
U40123-052 1 **Cable – Elevator Long Lower Horn (PA-15) 10913-02 1 Plug – Control Stick – Knob
11587-00 2 Clevis – Tab Control 11726-00 2 Pedal – Rudder and Brake
U61341-002 2 Clevis – Stabilizer Tail Brace Wire Upper 11807-00 1 Pedal – Rudder (PA-17)
U61341-004 2 Clevis – Stabilizer Tail Brace Wire Lower U41001-008 1 Pulley – at Torque Tube (PA-15)
U61341-003 2 Clevis – Fin Tail Brace Wire U41001-008 2 Pulley – at Torque Tube (PA-17)
U61341-002 2 Clevis – Fuselage Tie Rod U43001-000 2 Pulley – Tab Cable
11626-000 1 Control – Throttle U80421-000 8 Pulley – (Elevator and Rudder Cable) (PA-15)
U10911-000 3 Knob – Throttle (PA-15) U80421-000 8 Pulley – (Elevator and Rudder Cable) (PA-17)
U10911-000 5 Knob – Throttle (PA-17) U60742-000 1 Panel – Tail Inspection LH
11658-00 1 Channel – Hinge Tab Attachment U60742-001 1 Panel – Tail Inspection RH
1166-00 2 Clip – Tab Cable Attachment 42163-02 1 Rudder Assembly – Covered and Doped
U80002-060 1 Clamp – Round Bungee Cable to Stabilizer Attachment U40622-000 1 Rudder Assembly – Uncovered
Tube U10940-000 1 Spring – Bungee
U80222-023 2 Clamp – Rudder Pedal Torque Tube – Right (PA-17) U42891-000 2 Spring – Rudder Pedal Return
U80222-024 2 Clamp – Rudder Pedal 11592-00 1 Stick – Control
41692-01 1 Elevator Assembly Covered RH 11845-00 1 Stick – Control – Right (PA-17)
41692-02 1 Elevator Assembly Covered LH 11815-00 1 Stub – Control Stick – Right (PA-17)
-11579-000 1 Elevator Assembly Uncovered LH 41652-00 1 Stabilizer Assembly – Covered LH
U40572-000 1 Elevator Assembly Uncovered RH 41652-01 1 Stabilizer Assembly – Covered RH
U40701-000 6 Fairlead Cable – Long (Less Snap Ring) (PA-15) U40643-000 2 Stabilizer Assembly – Uncovered
U40701-000 8 Fairlead Cable – Long (Less Snap Ring) (PA-17) 415-955 10 Screw – Tab Control Lever Knob
U40071-000 12 Fairlead Cable – Short (Less Snap Ring) 81102-15 4 Shim – Torque Tube Bearing
U40081-000 11 Ring – Fairlead Snap 81102-16 4 Shim – Torque Tube Bearing
40592-07 1 Fin Assembly 11594-00 1 Tube – Rudder Pedal Torque Left (PA-15)
11577-00 1 Horn – Elevator Tab, Upper 11595-00 1 Tube – Rudder Pedal Torque Right (PA-15)
11577-01 1 Horn – Elevator Tab, Lower 11808-00 1 Tube – Rudder Pedal Torque Left (PA-17)
U10911-000 3 Knob – Control Stick, Throttle, Tab Lever (PA-15) 11809-00 1 Tube – Rudder Pedal Torque Right (PA-17)
U10911-000 5 Knob – Control Stick, Throttle, Tab Lever (PA-17) U11586-000 1 Tube – Stabilizer Attachment Front
U10449-000 1 Link – Elevator Horn Upper 11585-05 l Tube – Torque Right (PA-17) Control Stick
U41271-000 1 Link – Elevator Horn Lower 11585-06 1 Tube – Torque Left Control Stick
81352-13 2 Link – Front Elevator Cable (PA-15) U86062-079 1 Tube – Rear Stabilizer Attachment
81352-13 4 Link – Front Elevator Cable (PA-17) 11578-00 1 Tab Assembly – Elevator
81262-39 2 Link – Rudder Pedal Return 11569-03 2 Washer – Tab Control Lever
U81262-046 6 Link – Rudder Pedal (PA-15) U40131-000 2 Washer – Fin Tie Rod Clevis
U81262-046 7 Link – Rudder Pedal (PA-17) U81102-002 8 Washer – Square Tail Brace Wire Clevis
11589-02 1 Lever – Tab Control (PA-15) U80122-086 18 Washer – Tail Surface Hinge Pin
11589-02 2 Lever – Tab Control (PA-17) U41031-002 2 Wires – Tail Brace Upper Long
U10211-000 20 Nipple – Tab Cable Attachment U41031-003 2 Wires – Tail Brace – Lower Short
U41051-000 8 Nipple – Tail Brace Wires
