View All Gaskets

60096 LYCOMING FUEL PUMP GASKET

AN6246-19 HYDRAULIC PACKING BACK-UP RING

Hydraulic packing back-up ring Material: Leather Dimensions: A: 1-1/4 inch outside diameter B: 1/8 inch C: 1/16 inch

AN900-17 COPPER-ASBESTOS ANNULAR GASKET

Copper-asbestos annular gasket Material: Asbestos encased in copper Alternate part number MS35769-24 Dimensions: D: 1-1/16 inch inside diameter

AN900-27 COPPER-ASBESTOS ANNULAR GASKET

Copper-asbestos annular gasket Material: Asbestos encased in copper Alternate part number MS35769-46 Dimensions: D: 1-11/16 inch inside diameter

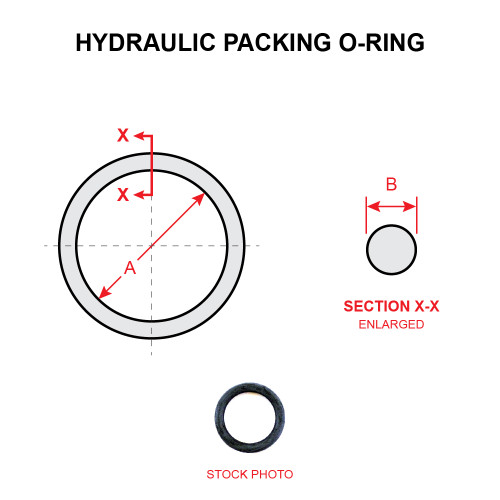

MS28775-115 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For dynamic or static use up to 275° F Supercedes part number AN6227-13 Dimensions: A: 43/64 inch inside diameter B: 7/64 inch

MS28775-229 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For static use up to 275° F Do not use in applications with reciprocating or rotary involvement Supercedes part number AN6230-7 Dimensions: A: 2-23/64 inch inside diameter B: 9/64 inch

MS28778-905 STRAIGHT THREAD TUBE FITTING BOSS O-RING

Straight thread tube fitting boss packing o-ring, preformed Material: Rubber Tube Outside Diameter: 5/16 inch Supercedes part number AN6290-5 Dimensions: A: 13/32 inch inside diameter B: 35/64 inch outside diameter C: 1/16 inch

AS3578-038 PREFORMED PACKING SEAL O-RING

Preformed packing seal o-ring Material: Rubber Supercedes part number MS9021-038 Dimensions: A: 2-39/64  inch inside diameter B: 2-3/4 inch outside diameter C: 1/16 inch

MS28775-234 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For static use up to 275° F Do not use in applications with reciprocating or rotary involvement Supercedes part number AN6230-12 Dimensions: A: 2-63/64 inch inside diameter B: 9/64...

MS29513-004 FUEL RESISTANT O-RING

Preformed hydrocarbon fuel resistant packing O ring Material: Rubber Not resistant to automotive fuels Dimensions: A: 1/16 inch inside diameter B: 7/32 inch outside diameter C: 1/16 inch diameter

AN901-12A METAL TUBE CONNECTION SEAL GASKET

Metal tube connection seal gasket Material: Aluminum Tube Outer Diameter: 3/4 inch Dimensions: A: 1-1/16 inch inside diameter B: 1-3/8 inch outside diameter C: 3/64 inch

MS28775-230 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For static use up to 275° F Do not use in applications with reciprocating or rotary involvement Supercedes part number AN6230-8 Dimensions: A: 2-31/64 inch inside diameter B: 9/64 inch

MS28775-232 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For static use up to 275° F Do not use in applications with reciprocating or rotary involvement Supercedes part number AN6230-10 Dimensions: A: 2-47/64 inch inside diameter B: 9/64...

67633 LYCOMING GASKET

AN900-21 COPPER-ASBESTOS ANNULAR GASKET

Copper-asbestos annular gasket Material: Asbestos encased in copper Alternate part number MS35769-33 Dimensions: D: 1-5/16 inch inside diameter

MS28775-334 HYDRAULIC PACKING O-RING

Preformed hydraulic packing O-ring Material: Rubber For dynamic or static use up to 275° F Supercedes part number AN6227-37 Dimensions: A: 2-39/64 inch inside diameter B: 13/64 inch
