Product Description
- Applicability: Piper PA-18
- See charts below for aircraft applicability and related parts
- Parts are numbered/identified from root to tip
- FAA-PMA approved
- An OVERSIZE FEE will be included in the shipping costs at checkout. For more information see Additional Shipping and Handling Fees.
| Applicability: Piper PA-18 (105/125/135 hp | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Description | Part Number | Position | Description | Part Number | |
| 1 | False Spar | U12784-000 (S/N 1 to 468) |
1 | False Spar | U12784-003 (S/N 1 to 3370, 3772 to 3780) |
|
| 1 | False Spar | U12784-005 (S/N 469 to 3770, 3772 to 3781) |

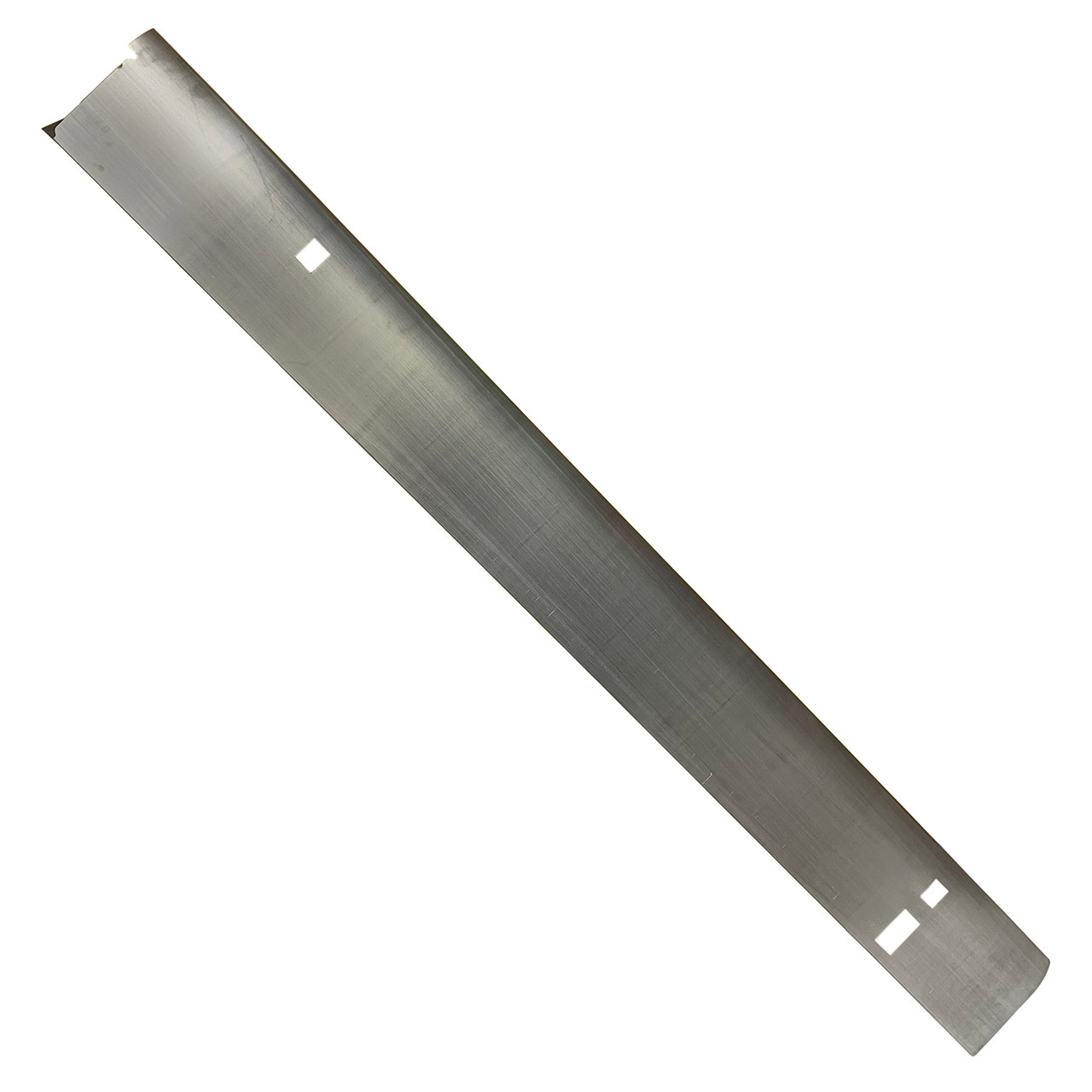

1 | False Spar 95, 105 & 125 hp |
U12783-000 (used with no R/H tank) |
|
| 2 | False Spar | U11670-002 (S/N 1 to 3370, 3372 to 3780) |
2 | False Spar | U11670-003 (S/N 1 to 3370, 3772 to 3780) |
|
| 3 | False Spar | U15562-000 (S/N 1 to 3370, 3772 to 3780) |
3 | False Spar | U15562-001 (S/N 1 to 3370, 3772 to 3780) |
|
| 4 | False Spar | U15572-000 (S/N 1 to 3370, 3772 to 3780) |
4 | False Spar | U15572-001 (S/N 1 to 3370, 3772 to 3780) |
|
