Product Description

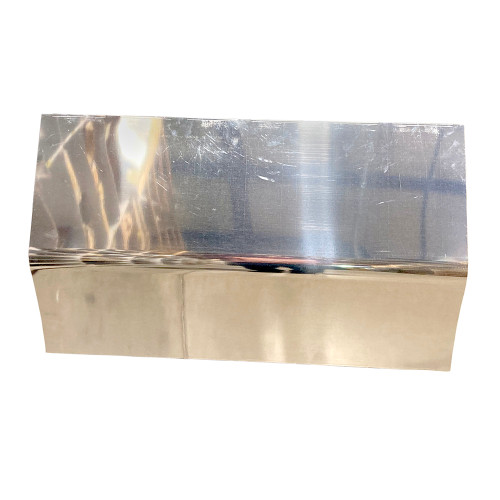

- Inboard leading edge skin, left
- Applicability: Piper PA-18, PA-20, PA-22
- Highlighted part in illustration
- See charts below for aircraft applicability and related skins
- Leading edge skins are numbered from root to tip
- Supercedes part numbers 10630-008, 10630-08
- FAA-PMA approved
- An OVERSIZE FEE will be included in the shipping costs at checkout. For more information see Additional Shipping and Handling Fees.
| Applicability: Piper PA-18, 150hp | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Part Number | Qty | Position | Part Number | Qty | |
| 1 | U10630-008 | 1 | 1 | U10630-005 | 1 | |
| 2 | U14387-000 | 1 | 2 | U14387-001 | 1 | |
| 3 | U14389-000 | 1 | 3 | U14389-001 | 1 | |
| 4 | U13072-006 | 1 | 4 | U13072-006 | 1 | |
| Tip | U15723-000 | 1 | Tip | U15723-001 | 1 | |
| Applicability: Piper PA-18, 150hp | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Part Number | Qty | Position | Part Number | Qty | |
| 1 | U10630-008 | 1 | 1 | U10630-005 | 1 | |
| 2 | U15482-005 | 1 | 2 | U15482-004 | 1 | |
| 3 | U13072-005 | 1 | 3 | U13072-005 | 1 | |
| Tip | U15723-000 | 1 | Tip | U15723-001 | 1 | |
| Applicability: Piper PA-22, 108hp Colt | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Part Number | Qty | Position | Part Number | Qty | |
| 1 | U10630-008 | 1 | 1 | U15137-000 | 1 | |
| 2 | U14405-000 | 1 | 2 | U14405-001 | 1 | |
| 3 | U13072-005 | 1 | 3 | U13072-005 | 1 | |
| Tip | U15723-000 | 1 | Tip | U15723-001 | 1 | |
| Applicability: Piper PA-22, serial numbers 1 through 2377 and 2379 through 2424 | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Part Number | Qty | Position | Part Number | Qty | |
| 1 | U10630-008 | 1 | 1 | U10630-005 | 1 | |
| 2 | U15482-004 | 1 | 2 | U15482-005 | 1 | |
| 3 | U13072-005 | 1 | 3 | U13072-005 | 1 | |
| Tip | U15723-000 | 1 | Tip | U15723-001 | 1 | |
| Applicability: Piper PA-22, serial numbers 2378, 2425 and up | ||||||
|---|---|---|---|---|---|---|
| Left Wing | Right Wing | |||||
| Position | Part Number | Qty | Position | Part Number | Qty | |
| 1 | U10630-008 | 1 | 1 | U10630-005 | 1 | |
| 2 | U14405-000 | 1 | 2 | U14405-001 | 1 | |
| 3 | U13072-005 | 1 | 3 | U13072-005 | 1 | |
| Tip | U15723-000 | 1 | Tip | U15723-001 | 1 | |
