Product Description

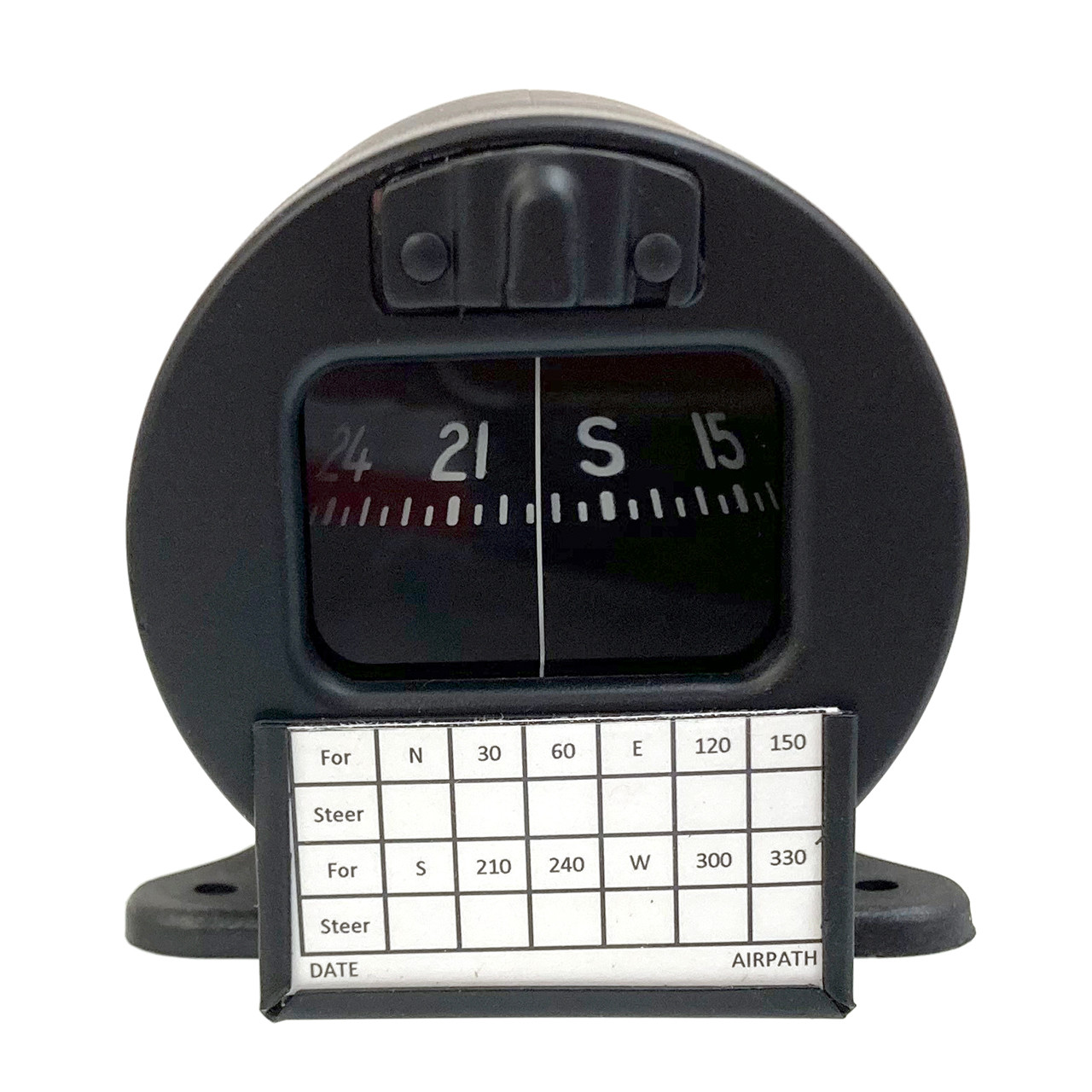

All compasses in the C-2400 series meet FAA TSO-C7c requirements. Specifically designed for installation either for streamline-type bracket housing or a pedestal-type housing. Each model is provided with mounting hardware, deviation card, deviation card window and either an attached cardholder, deviation plate, or standard unattached cardholder depending on the application.
- Standard magnetic compensator
- Markings: Black and white
- Leads: 2 ft white wire
- Lighting: Red 12 VDC
- Finish: Black
- Used in many light aircraft, this compass mounts on top of instrument panel and has built-in light and compensator magnets
- Supercedes part number 450-712
Applicability Chart
| Aircraft | Remarks |
|---|---|
| Bellanca Viking | - |
| Piper Comanche before April 1960 | C-2400-L4P replaces C-2400-LP |
| Piper Pacer | Shock mounted overhead type bracket – removable combination card and compensator adjustment screw cover |
