Product Description

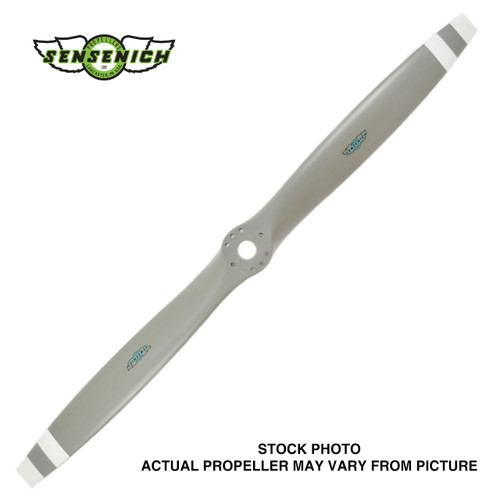

- Propeller Model: 74DM6S5
- Material: 2025 forged aluminum
- Diameter Reduction: 0"
- Blade Pitch: 58"
- Type Certificate: P886
- Bolt Kit: BK74DM6S5
- Spacer: SPM6S5
Applicability Chart
| Aircraft | Engine | Prop Type | Diameter | Static RPM Limits | Minimum Diameter for Repair |
|---|---|---|---|---|---|
| Beech Model B19 Sport [1] | Lycoming O-320 150hp | Cruise | 74" | 2300-2550 | 74" |
| Cessna 150 (all) / 150 (STC Avcon Conversions) [2] | Lycoming O-320 150hp | Standard | 74" | - | - |
| Piper PA-28-150 Cherokee C | Lycoming O-320 150hp | Standard | 74" | 2275-2375 | - |
| Piper PA-28-160 Cherokee C | Lycoming O-320 160hp | Climb | 74" | 2325-2425 | 72.5" |
| Zenair Zenith CH-2000A/150 | Lycoming O-320 150hp | Standard | 74" | - | 72.5" |
NOTES:
[1] 74DM6S5-0-58 propeller eligible only on Beech Model B19, serial numbers MB-481 to MB-616, at 2,000 lb gross weight. 74DM6S5-0-54 propeller eligible on Beech Model B19 at 2,150 lb gross weight. See T.C. data sheet A1CE.
[2] This propeller is installed under a Supplemental Type Certificate. Contact Avcon Conversions at 316-782-3851 for more information.
